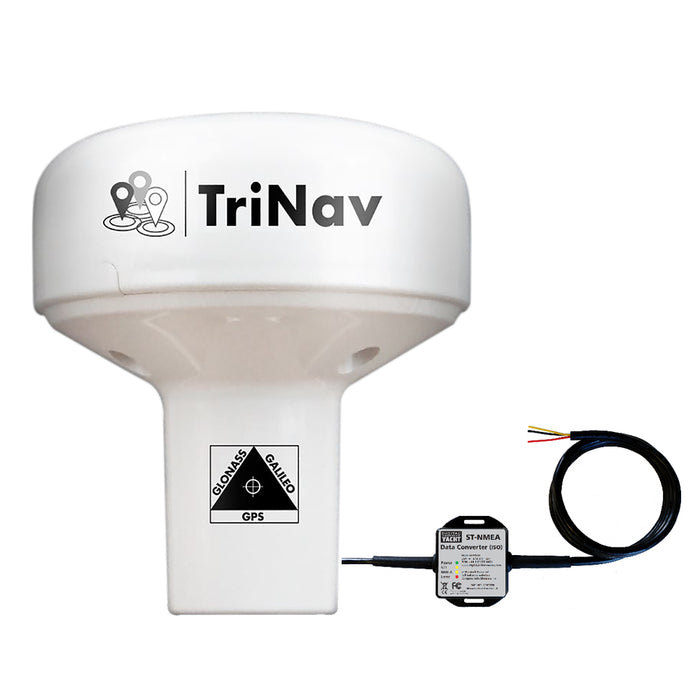

Digital Yacht GPS160 TriNav Sensor w/SeaTalk Interface Bundle
Digital Yacht

Digital Yacht GPS160 TriNav Sensor w/SeaTalk Interface Bundle

SKU
Save 6% Save 6%
$399.95
$399.95 - $399.95
$399.95
$374.79
$374.79 - $374.79
$374.79
Availability In Stock In Store - Online Only 3 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

GPS160 TriNav Sensor with SeaTalk Interface Bundle

The GPS160, a high performance positioning sensor using GPS, Galileo and Glonass satellite systems for exceptional positioning accuracies and redundancies.

TriNav technology allows all three systems to be simultaneously utilized for navigation. The device can also be field programmed for a variety of modes such as single GNSS operation (eg Galileo only) as well as output configurations such as update rate, NMEA sentence structure etc

The GPS160 is available with a NMEA 0183 output (4800, 38400 and 115200 baud programmable) and a USB variant for PC, MAC and Linux. For NMEA 2000 systems, a bundle is available with iKonvert allowing easy and flexible NMEA 2000 installation without the need for cumbersome drop cables.

The GPS160 also support an external MOB switch or device. When activated, it creates a “synthesized” AIS SART MOB message on the NMEA output which can be interfaced with a local plotter for MOB identification.

The GPS160 supports GPS, Glonass and Galileo positioning. Our TriNav technology is used to combine signals from all three systems to compute the best possible fix accuracy and reliability.

Galileo is the global navigation satellite system (GNSS) that has been developed over the past two decades. It joins the GPS and GLONASS systems and offers mariners a 3rd reliable positioning source. It is planned to be fully operational in 2020.

Features:

  • 72 channel GPS, Glonass and Galileo GNSS positioning receiver
  • Typically sub 1m accuracy thanks to TriNav technology –combines all satellite data for optimum accuracy
  • Can be configured as dedicated GPS, Glonass or Galileo only device
  • Sophisticated anti-spoofing algorithm for robust positioning performance and interference rejection
  • Available in NMEA 0183, NMEA 2000 (with iKonvert interface)and wireless (with WLN10SM) variants
  • GPS160USB also available with USB connection for PC/MAC
  • User/field selectable 4800, 38400 and 115200 baud operation through simple internal DIP switches
  • Multiple formats of NMEA data output including datum information –user configurable through internal DIP switches
  • Up to 18Hz update rate (user selectable)
  • Ultra low (<20mA) power consumption at 12V DC
  • Input for MOB switch/system –when activated generates synthetic AIS MOB NMEA output to activate MOB position on plotter
  • Professional system (ECDIS) support with datum sentence structure (DTM/GBS/GNS/GRS/GSA/GST)
  • Puck installation or fits 3rd party industry standard 1” x 14TPI threaded mount

Brand: Digital Yacht

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Brochure DYCZDIGGPS160ST Brochure ⬇ View Here
