Home Shop By Steering & Controls Steering Zipwake 2012032 | Series E CP-E Control Panel with 15 m (49 ft) Standard Cable
Zipwake 2012032 | Series E CP-E Control Panel with 15 m (49 ft) Standard Cable
Zipwake

Zipwake 2012032 | Series E CP-E Control Panel with 15 m (49 ft) Standard Cable

SKU
Save 17% Save 17%
$2,045.93
$2,045.93 - $2,045.93
$2,045.93
$1,698.40
$1,698.40 - $1,698.40
$1,698.40
Availability In Stock In Store - Online Only 14 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

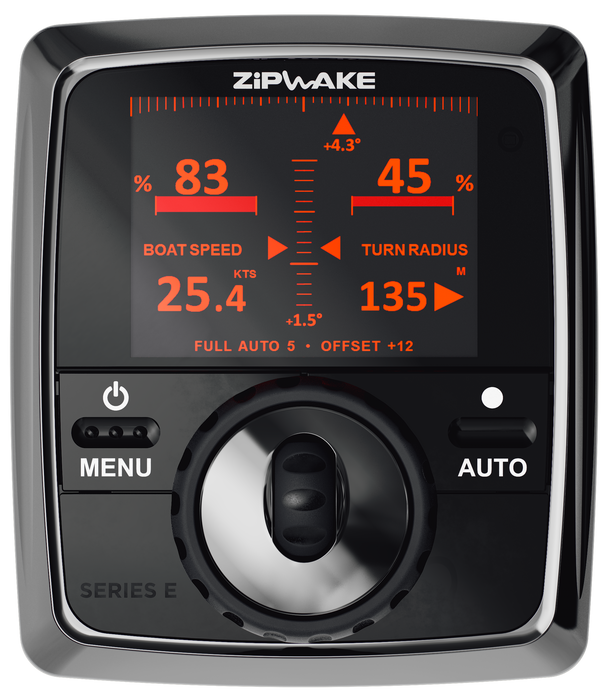

The Zipwake CP-E is the dedicated helm control panel for Series E systems. It combines automatic pitch-and-roll control, manual trim and heel controls, built-in positioning and motion sensors, and clear system feedback on a sunlight-readable display.

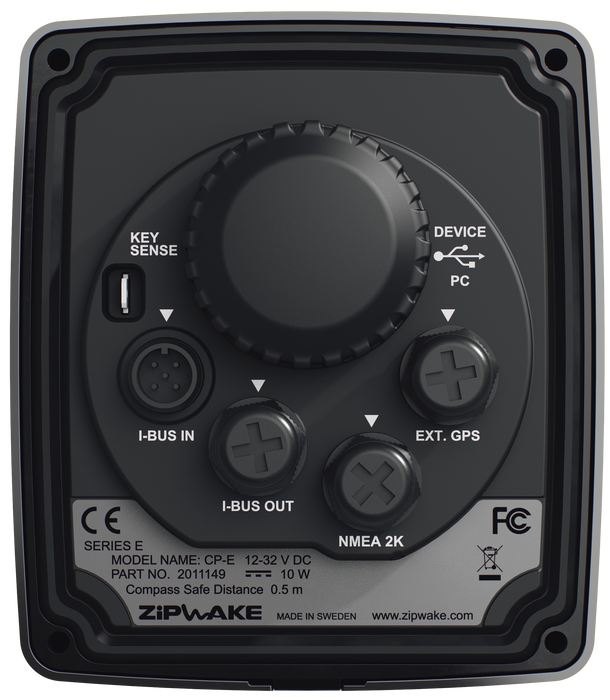

The waterproof panel supports surface, flush or gimbal-bracket mounting and provides I-BUS, NMEA 2000, external GPS, key-sense and USB service connections.

Product Information

Brand Zipwake
Series Series E
Model CP-E
Manufacturer Part Number 2012032
Product Type Control Panel

Key Features

  • Automatic dynamic pitch and roll control
  • Built-in 5 Hz GPS, 3D gyro and 3D accelerometer
  • Sunlight-readable color display
  • Manual trim, heel and heading controls
  • Supports up to three additional control panels

Specifications

Display 2.8 in IPS color TFT, 320 × 240 pixels
Operating Voltage 12–32 V DC
Power Consumption 10 W max
Operating Temperature -20°C to +80°C (-4°F to +176°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)
Waterproof Rating IP67 front / IP64 back
Compass Safe Distance 0.5 m (1.7 ft)
Compliance CE, FCC
Weight 0.22 kg (0.49 lbs)
Mounting Surface, flush or gimbal bracket
Included Cable 15 m (49 ft)

Included

  • 1 × CP-E control panel
  • 1 × standard cable, 15 m (49 ft)

Compatibility

For the stated Series E system generation. Manages configurations of one to six applicable interceptors.

Installation Notes

  • Mount surface, flush or with the Zipwake gimbal bracket as appropriate.
  • Maintain the specified compass-safe distance and waterproof rear connections.

Important Information

Do not mix this panel with an unsupported series or generation. Interceptors and the distribution unit are sold separately unless supplied in a kit box.

Brand: Zipwake

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
