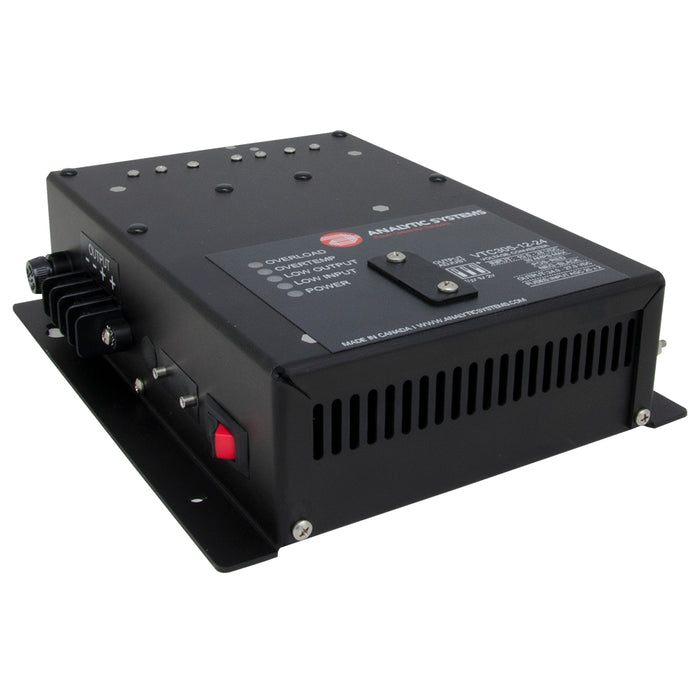

Analytic Systems Non Isolated DC/DC Converter 27A - 12V Out - 11-15V In
No reviews
SKU
MPN:
VTC305-12-12
Availability :
Out of stock
Online Inventory Only
This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Sold out
Original price
$548.00
Original price
$548.00
-
Original price
$548.00
Original price
$548.00
Current price
$535.83
$535.83
-
$535.83
Current price
$535.83
| /
Ship same day | Standard by 2PM EST| Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup
Non Isolated DC/DC Converter 27A - 12V Out - 11-15V In
Step up a 12 VDC battery to between 13.5 and 17.0 or 24.0 and 27.5 VDC in 0.5 VDC increments (via 3 position DIP switch), or stabilize a 12 or 24 VDC power system. Safety features include reverse input protection, low input voltage alarm, low output voltage alarm, over temperature shutdown and alarm, and output overvoltage crowbar. If the input voltage exceeds the regulated output voltage, the unit simply passes the voltage through with full LC filtering and a single schottky diode drop (0.5 VDC or less). Optional features include a dry contact alarm relay output, and remote panel monitoring with On/Off control. Applications include temporarily brightening 12 volt headlights or work lights, increasing voltage into an automotive or marine ignition system for hotter spark and/or prevention of failures due to voltage drop during engine start, stabilizing 12 and 24 VDC power systems in marine, automotive or aeronautical environments and more.
Features:
Ultra-quiet
Rugged and reliable to ensure years of safe and trouble free operation
Simple operation
Current limiting protection
Paralleling Diodes
European ROHS Compliant (Lead Free Manufactured)
Electric Fork Lift (Filtering and Surge Suppression)
Open Frame (No chassis just heat sink bars)
Safety Special Inspection (CSA/UL)
Heavy duty ruggedization with wide temperature range
Custom input/output available
Three year parts and labour warranty
Brand: Analytic Systems
