Zipwake 2012214 | Series E KB400-E CHINE Dynamic Trim Control Kit Box with Two 400 mm (15.7 in) Interceptors
par Zipwake

Zipwake 2012214 | Series E KB400-E CHINE Dynamic Trim Control Kit Box with Two 400 mm (15.7 in) Interceptors

UGC
Économisez 17% Économisez 17%
$7,826.50
$7,826.50 - $7,826.50
$7,826.50
$6,520.80
$6,520.80 - $6,520.80
$6,520.80
Disponibilité In Stock In Store - Online Only 1 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

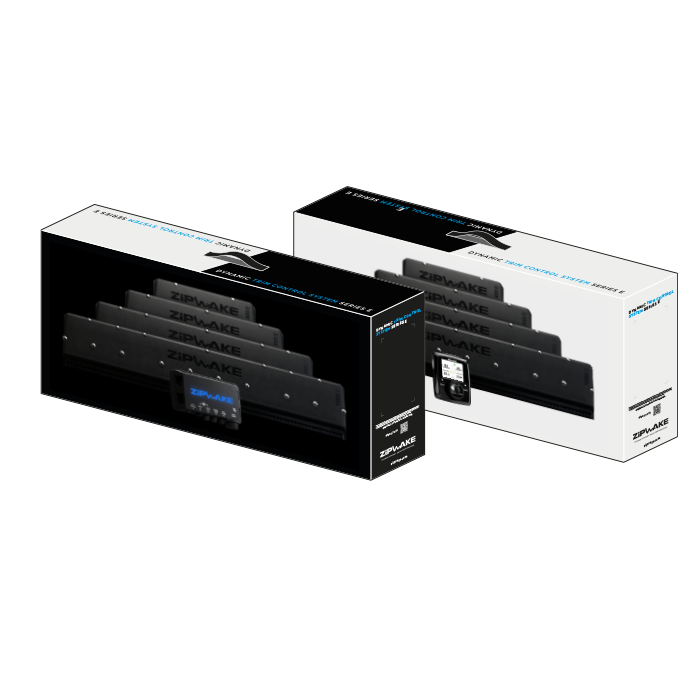

The Zipwake KB400-E CHINE is a complete Series E kit box built around two 400 mm (15.7 in) chine pair interceptors. It packages the matched control, distribution and interceptor components specified for this exact kit.

This standard configuration includes the dedicated Zipwake control panel for direct helm operation.

Product Information

Brand Zipwake
Series Series E
Model KB400-E CHINE
Manufacturer Part Number 2012214
Product Type Dynamic Trim Control Kit Box
Configuration Chine pair
Interceptor Size 400 mm (15.7 in)

Key Features

  • Factory-defined Series E kit configuration
  • Matched pair of chine pair interceptors
  • Control or integration hardware matched to the kit model
  • Exact component quantities confirmed in the current Zipwake specification

Specifications

Kit Configuration Chine pair
Interceptor Size 400 mm (15.7 in)
Packaged Dimensions 752 x 192 x 452 mm (29.6 x 7.6 x 17.8 in)
Packaged Weight 17.1 kg (37.7 lbs)
System Supply Voltage 12–32 V DC
Maximum Boat Speed 60 knots
Blade Stroke 60 mm (2.4 in)
Blade Rate 40 mm/s (1.6 in/s)

Included

  • 1 × CP-E control panel with 15 m (49 ft) standard cable
  • 1 × DU-E distribution unit with 6 m (19.7 ft) power cable
  • 1 × IT400-E CHINE PORT interceptor with 3 m (10 ft) cable and cable cover components
  • 1 × IT400-E CHINE STBD interceptor with 3 m (10 ft) cable and cable cover components

Compatibility

Designed as the exact KB400-E CHINE configuration for Zipwake Series E. Components from other series or non-PRO/PRO generations must not be mixed.

Installation Notes

  • Verify system sizing, interceptor placement and hull suitability before installation.
  • Use the exact Zipwake installation instructions and drill templates for the included interceptor models.
  • Connect power protection, networking and cable extensions only as specified for this series.

Important Information

This is a complete kit box with the exact components listed above. Do not replace the verified interceptor size or configuration with another model.
