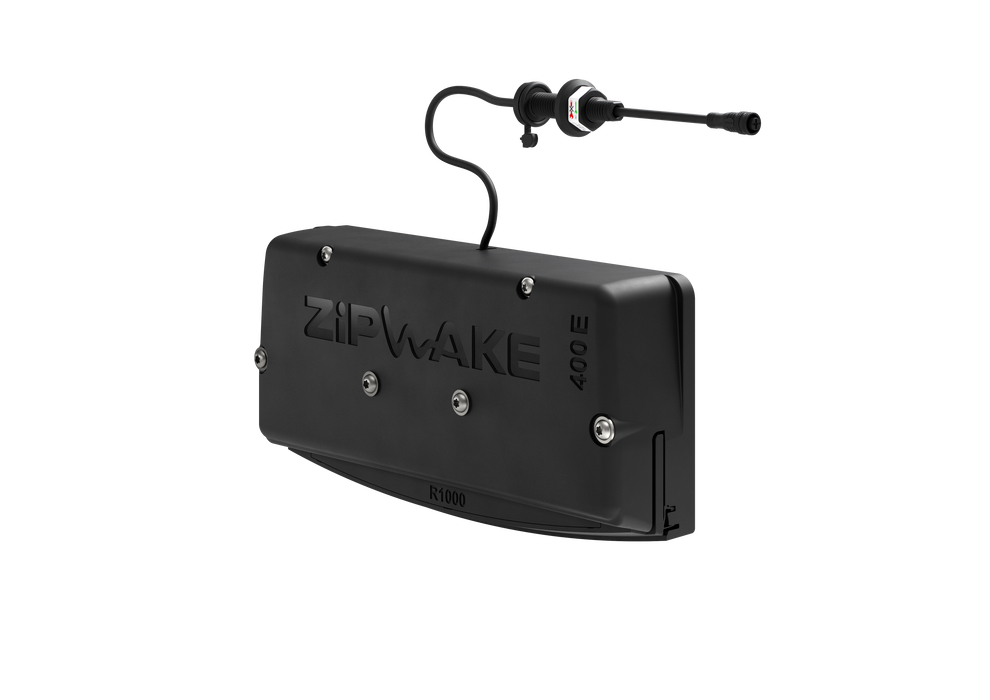

Zipwake 2012491 Series E IT400-E ROUND R1000 Interceptor, 400 mm (15.7 in) with 3 m Cable — product view
par Zipwake

Zipwake 2012491 | Series E IT400-E ROUND R1000 Interceptor, 400 mm (15.7 in) with 3 m Cable

UGC
Épuisé
$4,335.45
$4,335.45 - $4,335.45
$4,335.45
$2,131.99
$2,131.99 - $2,131.99
$2,131.99
Disponibilité Rupture de stock Lead Time Typically Ships within 1 Week In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

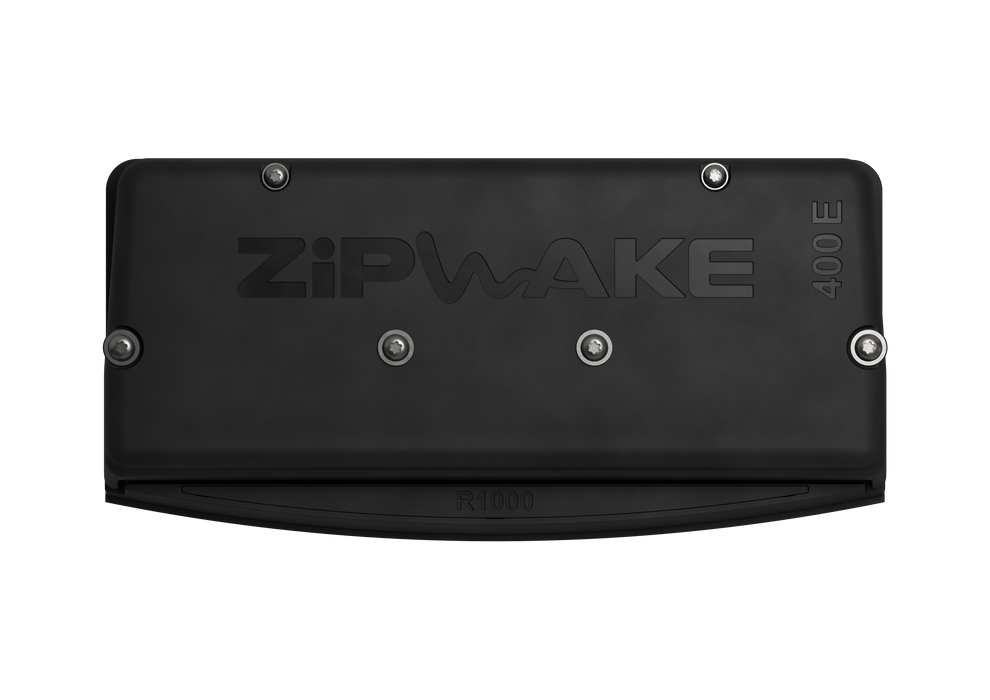

The Zipwake IT400-E ROUND R1000 is a round, 1000 mm radius, single servo interceptor for Series E dynamic trim-control installations. Mounted at the transom, it provides the linear blade movement used by the system to manage running trim, pitch and roll.

This individual interceptor includes a 3 m (10 ft) PUR cable and cable cover. The thru-hull cable entry may be concealed behind the interceptor or routed above the waterline.

Product Information

Brand Zipwake
Series Series E
Model IT400-E ROUND R1000
Manufacturer Part Number 2012491
Product Type Interceptor
Configuration Round, 1000 mm radius, single servo
Length 400 mm (15.7 in)

Key Features

  • Exact Series E round, 1000 mm radius, single servo configuration
  • Submersible, calibration-free servo actuation
  • Concealed or above-waterline cable-routing options
  • Rugged marine cable with M12 circular connector

Specifications

Configuration Round, 1000 mm radius, single servo
Length 400 mm (15.7 in)
Weight 5.2 kg (11.5 lbs)
Servo Units Single
Maximum Boat Speed 60 knots
Blade Stroke 60 mm (2.4 in)
Blade Rate 40 mm/s (1.6 in/s)
Operating Voltage 12–32 V DC
Power Consumption 25 W max per servo unit
Waterproof Rating IP68 to 5 m (16 ft)
Compliance CE, FCC
Cable Length 3 m (10 ft), extendable to 6 m (20 ft)
Cable Material PUR
Connector M12 5-pin circular, 14.5 mm (0.57 in) diameter
Operating Temperature 0°C to +40°C (+32°F to +104°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)

Included

  • 1 × IT400-E ROUND R1000 interceptor
  • 1 × attached 3 m (10 ft) cable
  • Applicable cable cover and mounting components

Compatibility

For a correctly configured Zipwake Series E system with the matching control panel or integrator module and distribution unit.

Installation Notes

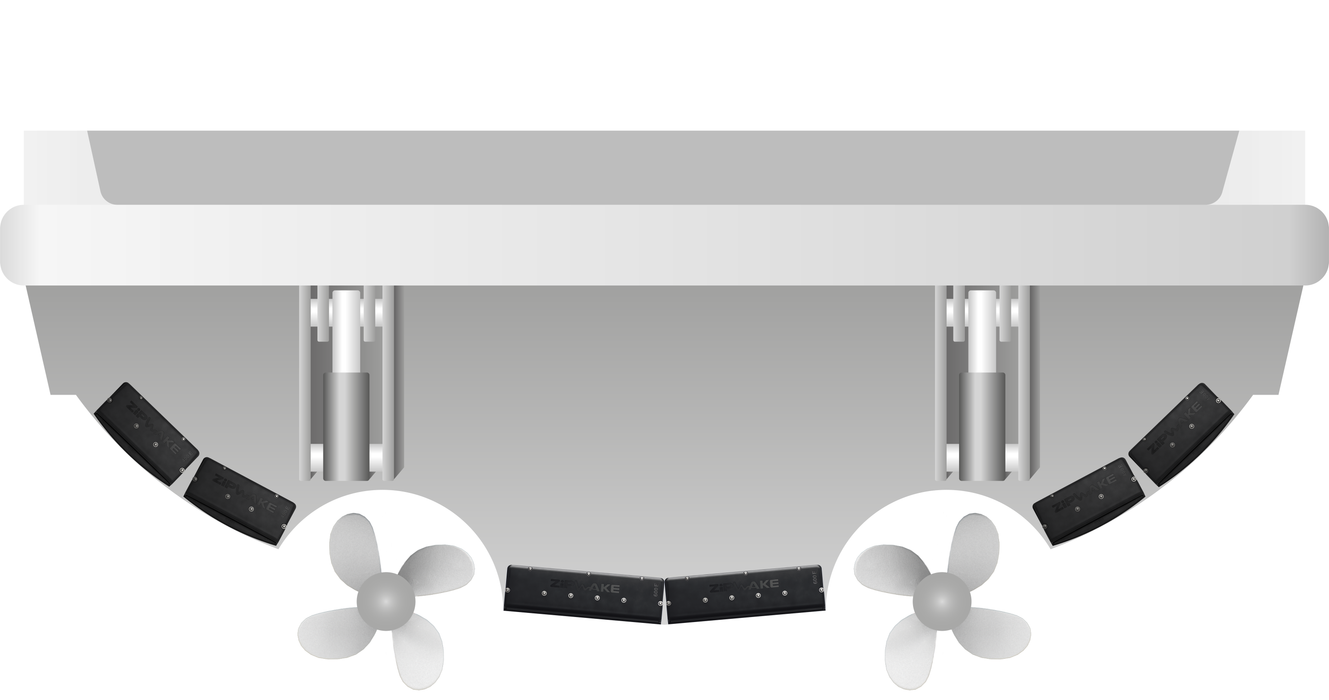

  • Verify the exact hull position, orientation, deadrise or tunnel radius before drilling.
  • The servo cable may be extended only with Zipwake 1.5 m or 3 m extension cables; total servo cable length must not exceed 6 m (20 ft).
  • Use the applicable Zipwake installation guide and drill template for this exact model.

Important Information

Sold as one interceptor, not as a paired kit box. Do not substitute another length, shape, side, radius or generation without exact system-design confirmation.
