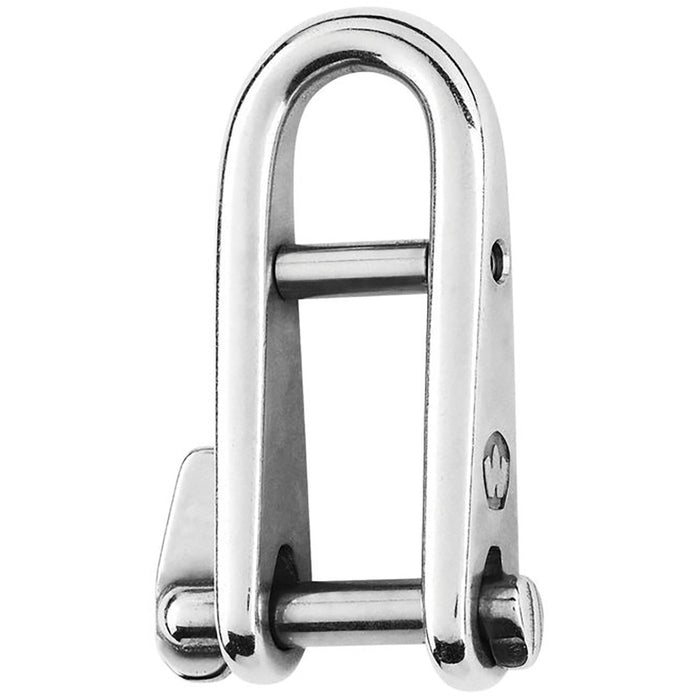

HR Key Pin Shackle With Bar - 8mm Pin Diameter

Features:

  • Forged D shackle in HR stainless steel grade (17,4 PH)
  • Outstanding working and breaking load
  • An HR shackle can be up to 60% more resistant than a shackle in 316L stainless steel
  • WLL: only for industrial applications (lifting i.e…)
  • CE marking

Applications:

  • Applications requesting high loads
  • Perfect product for halyards or applications requiring to opening/closing the shackle often
  • Do not use it for mooring applications

Specifications:

  • Materials: HR 17.4 PH stainless steel grade
  • Working load: (lb) 2110 / (kg) 960
  • Breaking load: (lb) 7710 / (kg) 3500
  • Weight: (lb) 0.271 / (g) 123

Dimensions:

  • A: (inch) 2 21/64" / (mm) 59
  • B: (inch) 53/64" / (mm) 21
  • C: (inch) 5/16" / (mm) 8
  • D: (inch) 43/64" / (mm) 17
  • E: (inch) 15/64" / (mm) 6
  • F: (inch) 3 7/64" / (mm) 79
  • G: (inch) 1 57/64" / (mm) 48
  • L: (inch) 25/32" / (mm) 20

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5
  • High Resistance (HR)

*Sold as an Individual
