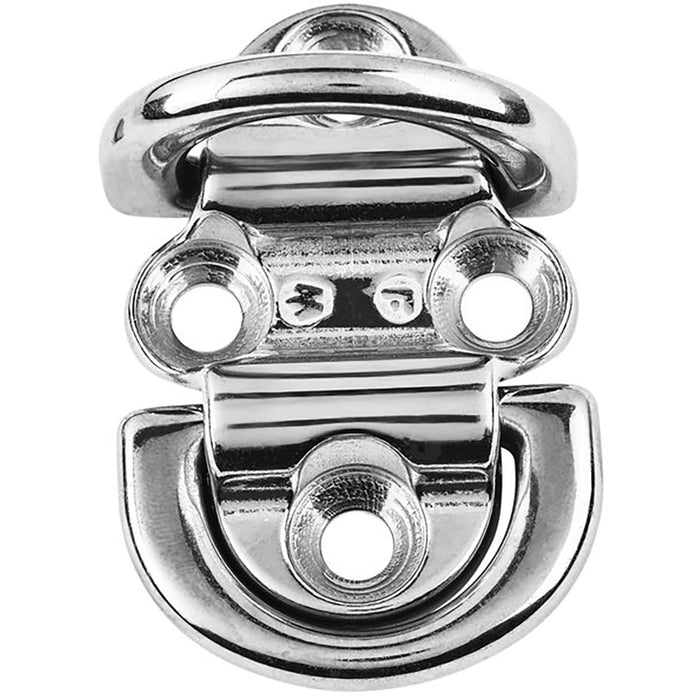

Wichard Double Folding Pad Eye - 8mm Diameter - 5/16"
par Wichard Marine

Wichard Double Folding Pad Eye - 8mm Diameter - 5/16"

UGC
Économisez 15% Économisez 15%
$229.09
$229.09 - $229.09
$229.09
$194.75
$194.75 - $194.75
$194.75
Disponibilité In Stock In Store - Online Only 9 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Double Folding Pad Eye - 8mm Diameter - 5/16"

Features:

  • Fully drop forged product with outstanding working and breaking loads regardless of the angle of the load
  • Perfect solution attachment (stay, blocks, jib tack point)
  • Possibility to attach several stays
  • Modern and optimized design to suit the aesthetics of modern boats
  • They can be folded down to minimize the risk of injuries
  • The silicon pad eliminates noise and unpleasant vibrations

Applications:

  • For any fastening/attachment application
  • Allows to attach several shrouds

Specifications:

  • Materials: 316L stainless steel grade
  • Working load: (lb) 5290 / (kg) 2400
  • Breaking load: (lb) 9470 / (kg) 4300
  • Weight: (lb) 0.556 / (g) 252

Dimensions:

  • A: (inch) 2 21/64" / (mm) 59
  • B: (inch) 1 3/8" / (mm) 35
  • C: (inch) 43/64" / (mm) 17
  • d diameter: (inch) 21/64" / (mm) 8.5
  • D diameter: (inch) 5/16" / (mm) 8
  • E: (inch) 3 3/16" / (mm) 81
  • F: (inch) 2 21/64" / (mm) 59

Caption:

  • Working Load (WL): For nautical applications
  • Working Load Limit (WLL): For industrial applications only. The safety factor is 5 times the breaking load. WLL = Breaking load / 5

*Sold as an Individual

Brand: Wichard Marine

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet WIC6565 Quick Guide ⬇ View Here
