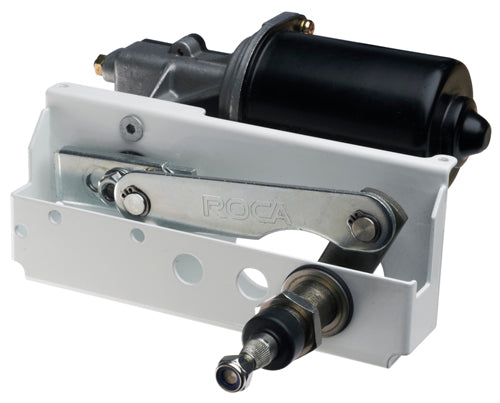

Roca W25 Heavy Duty Marine Wiper Motor 12V 25Nm with 28mm Bulkhead Mount
par Imtra

Roca W25 Heavy Duty Marine Wiper Motor 12V 25Nm with 28mm Bulkhead Mount

UGC
Économisez 40% Économisez 40%
$535.84
$535.84 - $535.84
$535.84
$322.05
$322.05 - $322.05
$322.05
Disponibilité In Stock In Store 4 Online Only 28 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Ship same day | Standard by 2PM EST | Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Roca W25 Wiper Motor is a compact and reliable 12V unit designed for harsh marine environments. Delivering 25Nm of torque, it powers arms and blades up to 750mm (29.5 inches), and reaches up to 45 inches with the pantograph option. The motor mounts on bulkheads up to 28mm (1.1 inches) thick, and offers smooth, flexible operation with adjustable sweep angles and two-speed control.

  • 25Nm torque for strong wiping power
  • Drives up to 750mm (29.5 in.) arms and blades
  • Max wiping reach of 45 in. with pantograph setup
  • Two speed operation: 40 sweeps/min (slow), 60 sweeps/min (fast)
  • Stepless sweep angle adjustment from 45 to 110 degrees
  • Dynamic parking, reversible for left or right configuration
  • Single tapered drive shaft for secure arm attachment
  • External idler shaft mount available for pantograph setups
  • Insulated ground suitable for metal, GRP, or wooden boats
  • CE approved and EMC protected
  • Easy installation and wiring
  • Wide compatibility with multiple arm and blade styles
  • 3-year warranty on motor and arms; 1-year warranty on blades
Name Description
Manufacturer Part No RC531015
Voltage 12V
Torque 25Nm
Bulkhead Thickness (mm) 28mm
Bulkhead Thickness (in.) 1.1 in.
Sweep Angle Adjustment 45 to 110 degrees, stepless adjustment
