Vetus Maxwell FTR330/25 Vetus Series Cooling Water Strainer 1"
par Vetus Maxwell

Vetus Maxwell FTR330/25 Vetus Series Cooling Water Strainer 1"

UGC
Économisez 4% Économisez 4%
$129.99
$129.99 - $129.99
$129.99
$124.99
$124.99 - $124.99
$124.99
Disponibilité Available for Order In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

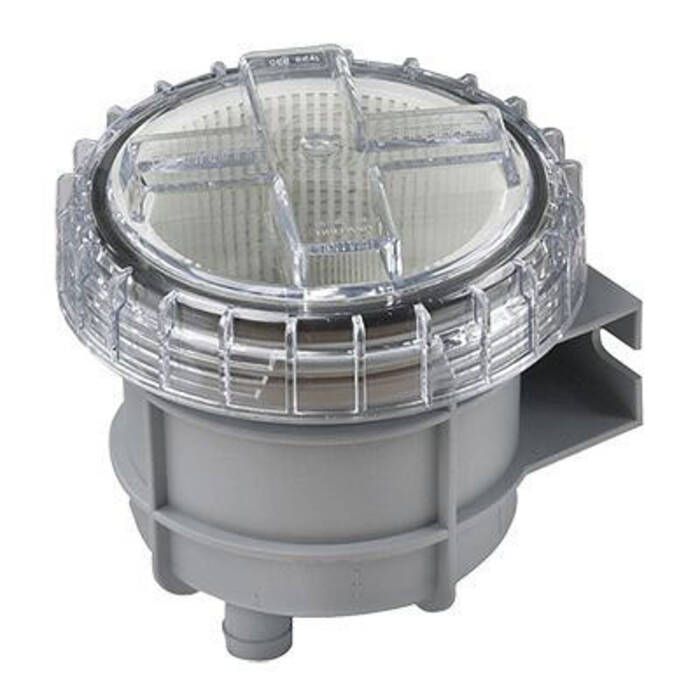

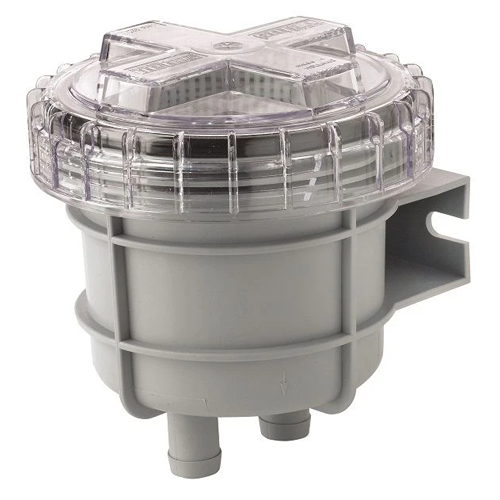

The Vetus FTR330 Series Cooling Water Strainer is a relatively low maintenance strainer that is designed to handle multiple gallons per minute of water flow. Its transparent cover makes inspections a breeze and because it is removeable, the filter element is easy to clean.

Features:

  • Cooling water strainer
  • Includes a transparent cover for easy inspection of the filter content. Cover is removable by simply unscrewing a single central knob
  • The strainer can be easily mounted using the separate wall bracket
  • Strainer can be rotated 360° to align the hose connections
  • The polished stainless steel mounting bracket clamps it securely in place
  • Parallel connection of (2) strainers can be done (strainers are sold individually)
    • With (2) water strainers in parallel a larger capacity can be obtained
    • With (2) water strainers in parallel and with the use of (2) extra valves (valves sold separately) it is possible to clean each filter separately, while the engine is running
  • Low maintenance: The filter element requires infrequent cleaning due to the large, active surface area

Specifications:

  • Housing material: Polypropylene GF
  • Strainer element: HD Polyethylene
  • Lid material: Polypropylene GF
  • Mounting bracket: Polypropylene GF/Stainless steel
  • Max. ambient temperature: 75° C (167° F)
  • Max. water temperature: 55° C (131° F)
  • Max. pressure: 0.5 bar (50 kPa, 7 psi)
  • Recommended Input:
    • 12.7 mm (1/2") Inlet/Outlet Diameter: 23 L/minute
    • 15.9 mm (5/8") Inlet/Outlet Diameter: 35 L/minute
    • 19.1 mm (3/4") Inlet/Outlet Diameter: 51 L/minute
    • 25.4 mm (1") Inlet/Outlet Diameter: 91 L/minute
    • 31.8 mm (1-1/4") Inlet/Outlet Diameter: 143 L/minute
    • 38.1 mm (1-1/2") Inlet/Outlet Diameter: 200 L/minute

Installation:

  • Always install the water strainer above the waterline
  • Mount the strainer against a vertical bulkhead
  • Always Install a sea-cock on the water inlet scoop
  • Always use flexible hose for both connections
    • Water scoop to strainer
    • Strainer to engine
  • Use only water and/or soap to ease fitting the hoses to the hose connections
    • Never use products containing grease or oil
  • Fit each hose connection with (2) stainless steel hose clamps (sold separately)
  • Pay attention to the flow direction through the filter

Note: imperial dimensions are approximate, the manufacturer built this product to metric specs.
