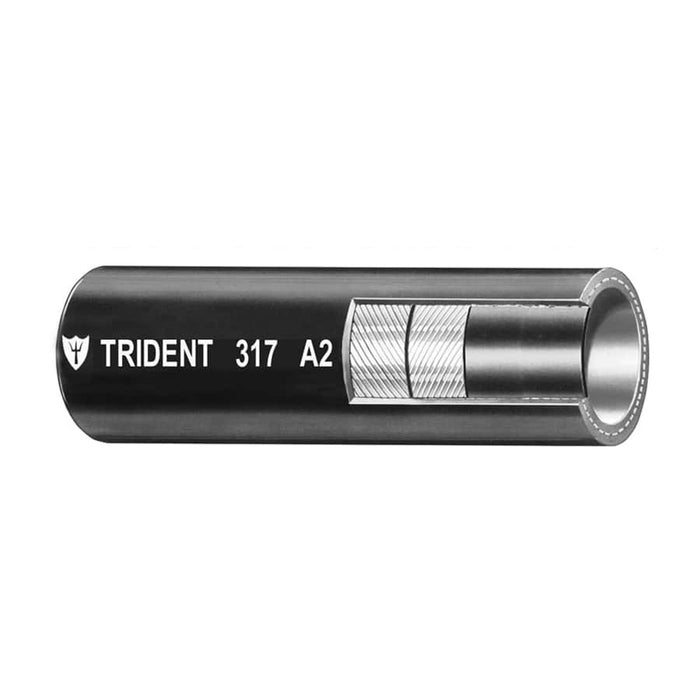

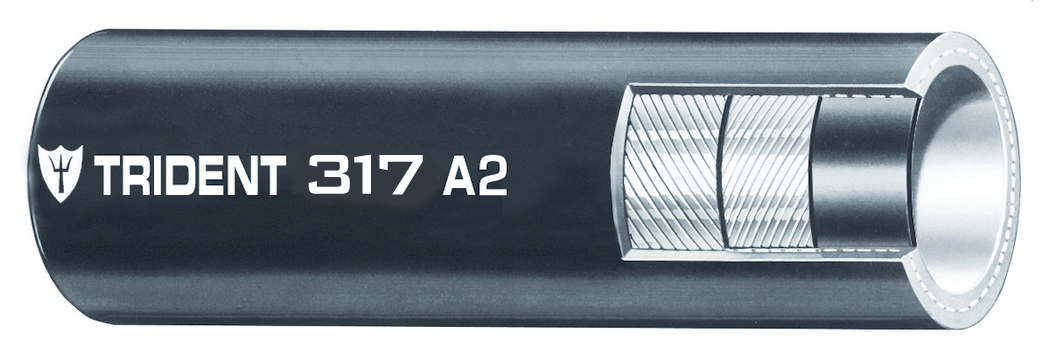

Trident Marine 317-0586 5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose Black
par Trident Marine

Trident Marine 317-0586 5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose Black

UGC
Économisez 61% Économisez 61%
$266.33
$266.33 - $266.33
$266.33
$104.74
$104.74 - $104.74
$104.74
Disponibilité In Stock In Store 2 Online Only 16 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Ship same day | Standard by 2PM EST | Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

5/8" x 50' Boxed Type A2 Fuel & Vent Line Hose - Black

Trident 5/8” A2 Fuel Hose for gasoline vent hose (including ethanol blends) and diesel (including bio diesel blends). This hose is built with the best fuel, fire and age resistant formulation.

Features:

  • Provides extraordinary resistance to aging, fire, heat, cold, and the ozone
  • Also provides excellent bend-ability
  • NMMA Type Accepted & CE certified

Application:

  • Fuel Hose for vent and diesel distribution
  • For all marine fuels including gasoline, alcohol blends, diesel and bio-diesel

Construction:

  • Tube: Nylon Internal Barrier, NBR
  • Cover: NBR/PVC Blend
  • Reinforcement: Polyester 2 spiral
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Length: 50 ft. (15 m) Boxed

Specifications:

  • Inner Diameter: (inch) 5/8" / (mm) 15.9
  • Outer Diameter: (inch) 0.960 / (mm) 24.4
  • Burst Pressure: (psi) 200 / (mpa) 1.38
  • Working Pressure: (psi) 50 / (mpa) 0.34
  • Bend Radius: (inch) 3" / (mm) 76.2
  • Weight: (lb/100 ft.) 25.84 / (kg/m) 11.72

*The #317 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, & USCG Type A2

Brand: Trident Marine

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet TRM317-0586 Quick Guide ⬇ View Here
