Trident Marine 305-0566 Trident B1-15 EPA Fuel Line 5/16 X 50'
par Trident Marine

Trident Marine 305-0566 Trident B1-15 EPA Fuel Line 5/16 X 50'

UGC
Économisez 96% Économisez 96%
$198.99
$198.99 - $198.99
$198.99
$8.40
$8.40 - $8.40
$8.40
Disponibilité In Stock In Store - Online Only 57 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
Non-returnable

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

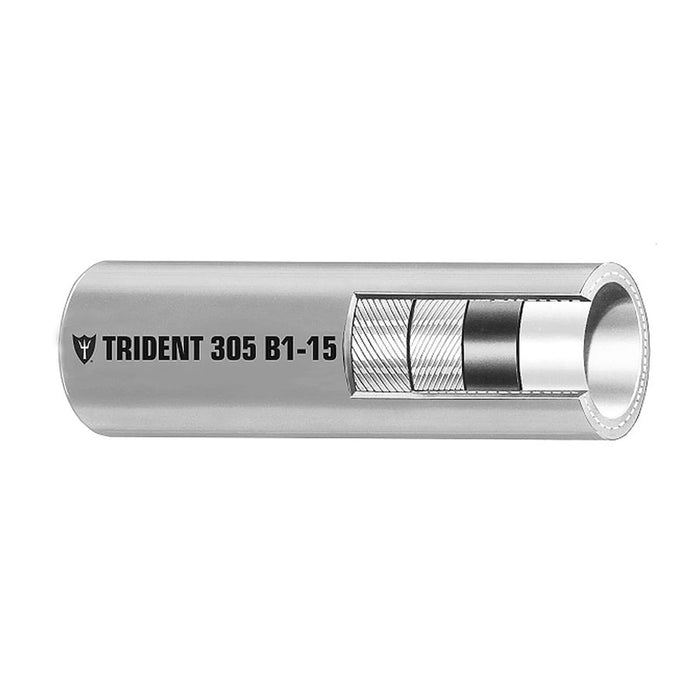

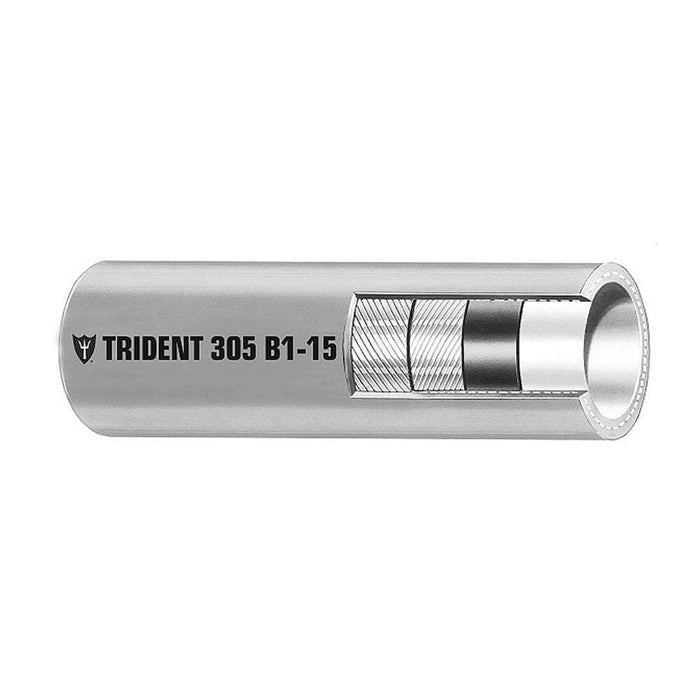

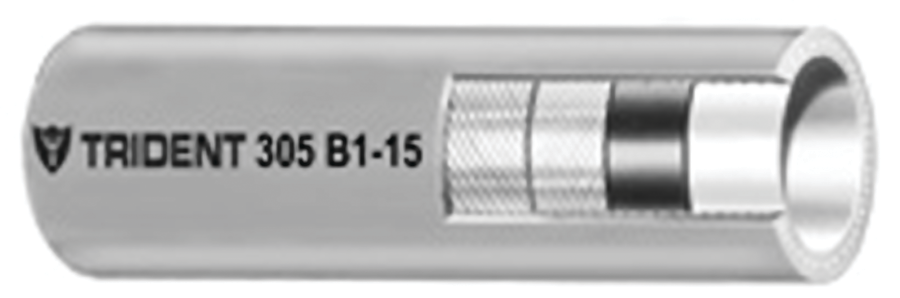

5/16" x 50' Boxed Barrier Lined B1-15 EPA Compliant Outboard Fuel Line Hose - Gray

This hose is built with the best fuel and age-resistant formulations and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber. This greatly reduces fuel permeation and prevents ethanol degradation of the rubber tube, which can cause small pieces of rubber to reach and damage the engine. That is particularly important considering the prospect of higher ethanol blends (E-15) available at gas stations next year.

Features:

  • Provides extraordinary resistance to fuel permeation, aging, heat, cold, and ozone
  • Also, provides excellent rope-like bend-ability and fitting retention
  • For both gasoline (including ethanol blends up to E85) and diesel (including bio diesel blends up to 100%)
  • EPA Certified and CARB Executive Order for low permeation Type B1-15
  • NMMA Type Accepted & CE certified

Application:

  • Marine Fuel Hose for distribution, return, vent and transfer
  • For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

  • Tube: Fluoroplastic Internal Barrier
  • Cover: Gray CPE Rubber
  • Reinforcement: 2-Spiral Polyester Plies
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Length: 50’ (15m) Boxed

Specifications:

  • Inner Diameter: (inch) 5/16" / (mm) 7.92
  • Outer Diameter: (inch) 0.500 / (mm) 12.7
  • Burst Pressure: (psi) 175 / (mpa) 1.21
  • Working Pressure: (psi) 35 / (mpa) 0.24
  • Bend Radius: (inch) 2.5" / (mm) 63.5
  • Weight: (lb/100 ft.) 7.8 / (kg/m) 0.116
  • Permeation Rate (Standard is (15g/m^2/24hrs (CE10)): 5.0

*The #305 series exceeds ABYC H-24, SAE J1527, ISO 8469 B1, USCG Type B1-15

Brand: Trident Marine

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet TRM305-0566 Quick Guide ⬇ View Here
