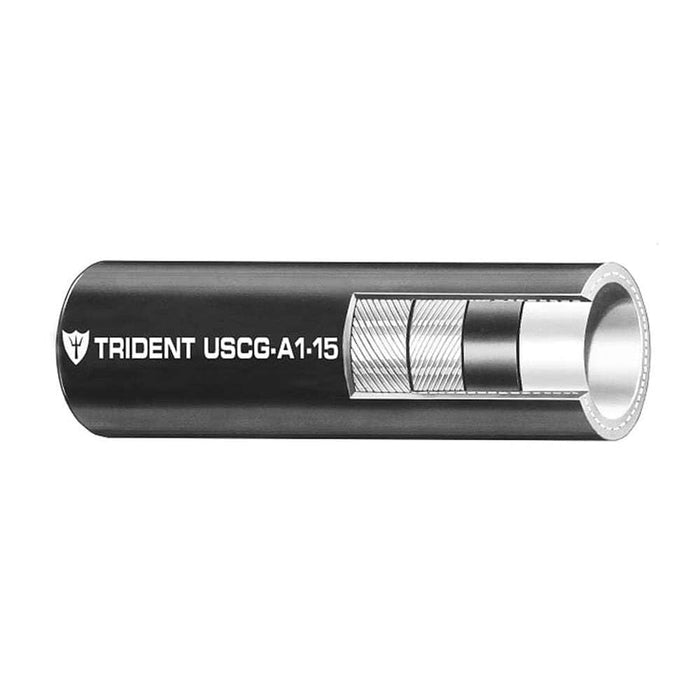

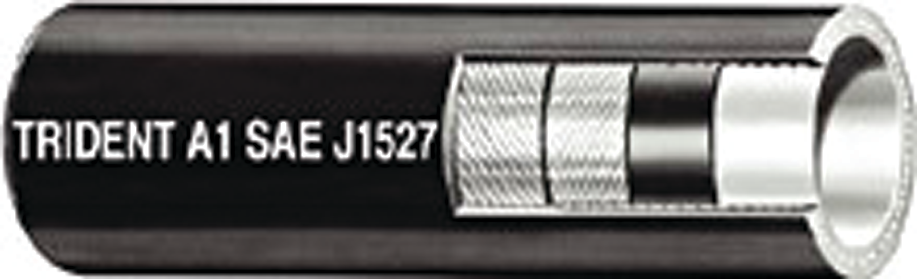

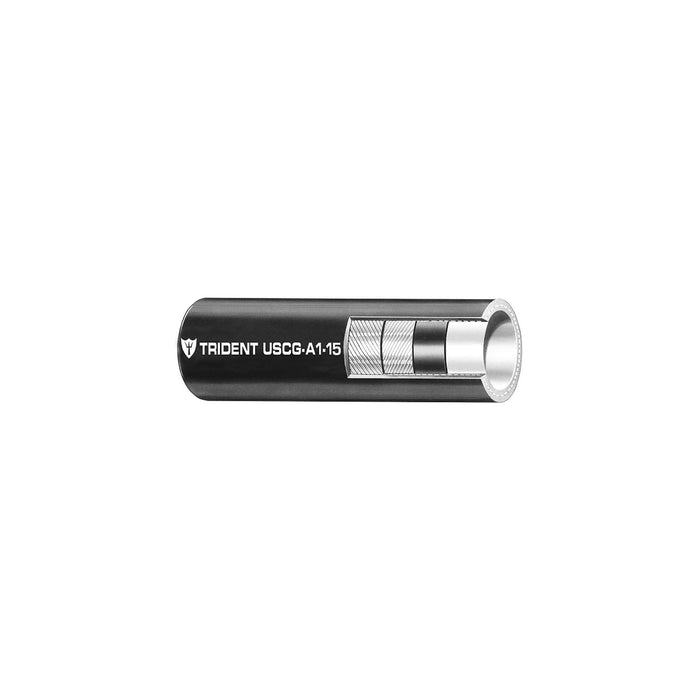

Trident 3650566 Type A1 Barrier Lined Fuel Hose, 5/16" x 50'
par Trident Marine

Trident 3650566 Type A1 Barrier Lined Fuel Hose, 5/16" x 50'

UGC
$0.00 - $0.00
$0.00
$0.00 - $0.00
$0.00
Disponibilité In Stock In Store 2 Online Only 63 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Ship same day | Standard by 2PM EST | Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup
Non-returnable

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

5/16" x 50' Boxed Low Permeation Type A1-15 Fuel Line Hose - Black

Trident Barrier Lined A1-15 Fuel Hose for both gasoline (including ethanol blends up to 85%) and diesel (including bio diesel blends up to B100). This hose is built with the best fuel, fire, and age-resistant formulation and a unique "Barrier Liner" on the inside surface of the tube, so fuel is not in direct contact with rubber.

Features:

  • Provides extraordinary resistance to fuel permeation, aging, and also to fire, heat, cold, and the ozone
  • Also provides excellent bend-ability
  • NMMA Type Accepted & CE certified

Application:

  • Marine Fuel Hose (distribution, return, vent and transfer)
  • For all marine fuels including gasoline, alcohol blends (CE-10), diesel and bio-diesel

Construction:

  • Tube: Nylon Internal Barrier, NBR
  • Cover: NBR/PVC Blend
  • Reinforcement: Polyester 2 spiral
  • Temperature Range: -20°F to 212°F (-28ºC to 100ºC)
  • Length: 50 ft. (15 m) Boxed

Specifications:

  • Inner Diameter: (inch) 5/16" / (mm) 7.92
  • Outer Diameter: (inch) 0.611 / (mm) 15.5
  • Burst Pressure: (psi) 400 / (mpa) 2.76
  • Working Pressure: (psi) 100 / (mpa) 0.69
  • Bend Radius: (inch) 1.75" / (mm) 44.5
  • Weight: (lb/100 ft.) 13.3 / (kg/m) 0.198
  • Permeation Rate: <10 (Standard is 10g/m2/24 hrs (CE10)

*The #365 series exceeds ABYC H-24 & H-33, SAE J1527, ISO 7840, USCG Type A1-15; CARB Executive Order RM-17-008 and EPA Certified low permeation Type A1-10

Brand: Trident Marine

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet TRM365-0566 Quick Guide ⬇ View Here
