Samlex 100W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 12.5V Output
par Samlex America

Samlex 100W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 12.5V Output

UGC
Épuisé
$223.40
$223.40 - $223.40
$223.40
$181.39
$181.39 - $181.39
$181.39
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Ship same day | Standard by 2PM EST | Express by 1PM EST
Are you local? | Local same day delivery & FREE Store Pickup

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

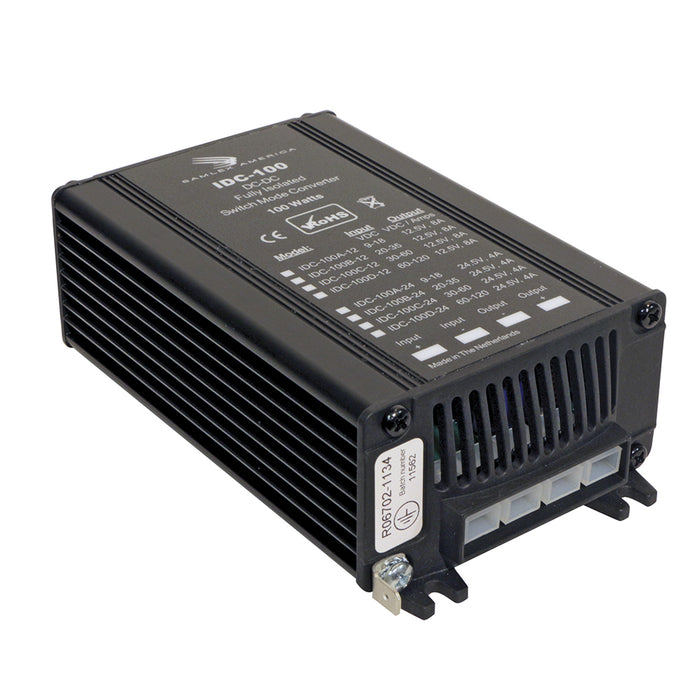

100W Fully Isolated DC-DC Converter - 8A - 9-18V Input - 12.5V Output

IDC-100 series is a complete line of high efficiency 100 Watt isolated DC-DC converters suitable for applications requiring galvanic isolation between the input and the output. IDC-100A-12 isolated DC-DC converter provides a highly regulated output DC voltage of 12.5 Volts for an input DC voltage range of 9-18 Volts and rated output current of 8 Amps (at 18 Volts input). Features of this isolated DC-DC converter include compact housing, fold-back current limiting and protection against short circuit, overheating, overvoltage and reverse polarity connection. The unit comes with 1/4” push-on flat blade “quick disconnect” connectors. IDC-100A-12 isolated DC-DC converter is EMI/EMC compliant and conforms to European standards EN50081-1 (for EMI), EN50082-1 (for EMC) and the European Automotive Directive 95/54/CE.

Features:

  • Fully Isolated
  • Short Circuit Protected
  • Current Limited
  • 2 Year Warranty

Specifications:

  • Input: 9.2-18 VDC
  • Output: 12.5 VDC
  • Amps: 8 Amps
  • Weight: 1.2 (lbs)
  • Weight: 0.54 (kg)
  • Dimensions: 6 x 3.5 x 1.9 (in)
  • Dimensions: 15.2 x 8.9 x 4.8 (cm)
  • Safety: CE
  • Warranty: 2 Year Limited

Applications:

  • Earth moving equipment
  • Heavy trucks
  • Buses
  • Marine vehicles
  • CB radios
  • 12 Volt lighting systems
  • AM/FM sound systems
