par Imtra

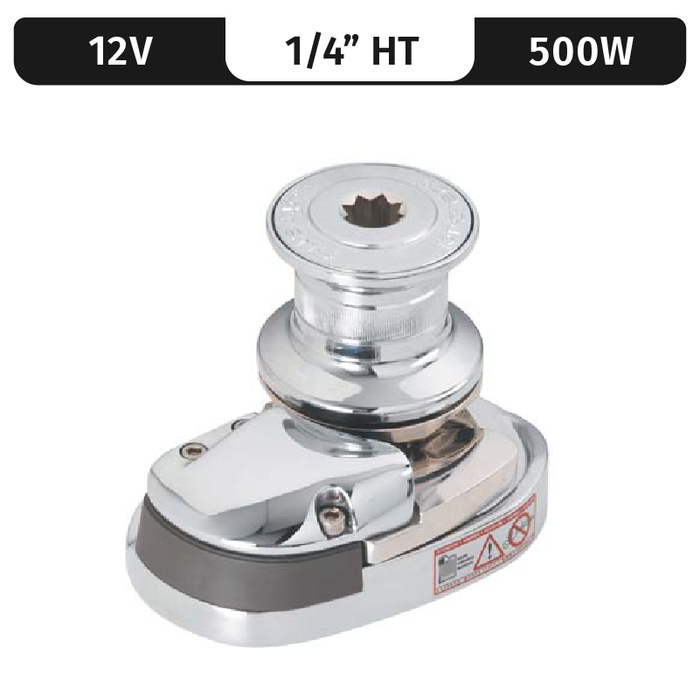

Lofrans LW7901C-1/4 | Project 500/x1, 12VDC, 500W Capstan, 1/4"HT Gypsy

UGC
Épuisé
Prix d'origine $2,100.00
Prix d'origine $2,100.00 - Prix d'origine $2,100.00
Prix d'origine $2,100.00
Prix actuel $1,789.65
$1,789.65 - $1,789.65
Prix actuel $1,789.65
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
Need Help From Our Sales Team?

Available during our normal business hours:

Project 500 Windlass, 500W, 12VDC, chrome finish, capstan version. Comes with standard stud length to allow a max clearance of 1".

Standard Equipment:

Rope/chain management system

Watertight dual direction solenoid control box

(2) black covered footswitches

Clutch handle

The Project 500 is available in a variety of different versions for you to choose from. The two primary styles: Low-Profile and Capstan. Within each style, there are two additional options for deck thickness available (see related products):

LWPDB002: Optional deck studs -allows for max clearance of 1-3/4"

LW7901XDC: Model with extra deck clearance - allows max clearance of 4-3/4"Replaces old item number LW7901

Features

  • Contemporary topworks styling and smooth lines enhance the foredeck
  • Our aft facing stainless pressure finger ensures smooth and trouble-free transition from rope to chain during retrieval and deployment
  • High ratio gearbox for fast retrieval
  • Stainless mainshaft
  • Worm drive sealed gearbox
  • Radially adjustable gearbox
  • Anodized aluminum gearbox housing
  • Bronze gears
  • Built in chainpipe
  • Neoprene deck gasket included
  • Clutch handle included
  • 3 year warranty
  • Option: Extra deck clearance model available, to 4 3/4"

Specifications

Brand Lofrans
Manufacturer Part Number LW7901C-1/4
Finish Chromed Bronze
Motor Wattage 500W
Version Vertical Capstan
Working Load 205 lbs (95 kg)
Gearbox Stainless Worm Drive
Mainshaft Stainless
Standard Equipment Watertight Control Box, 2 x Footswitch, Handle
Max Retrieval Speed (ft/min) 75
Approximate Boat Size 30 - 48 ft.
Deck Thickness 10-30mm, 3/8" - 1-3/16"
Retrieval Speed @ Working Load 75 ft/min (23 m/min)
Amperes @ Working Load 60
Manual Override System No

Brand: Imtra

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

No documentation available for this item.
