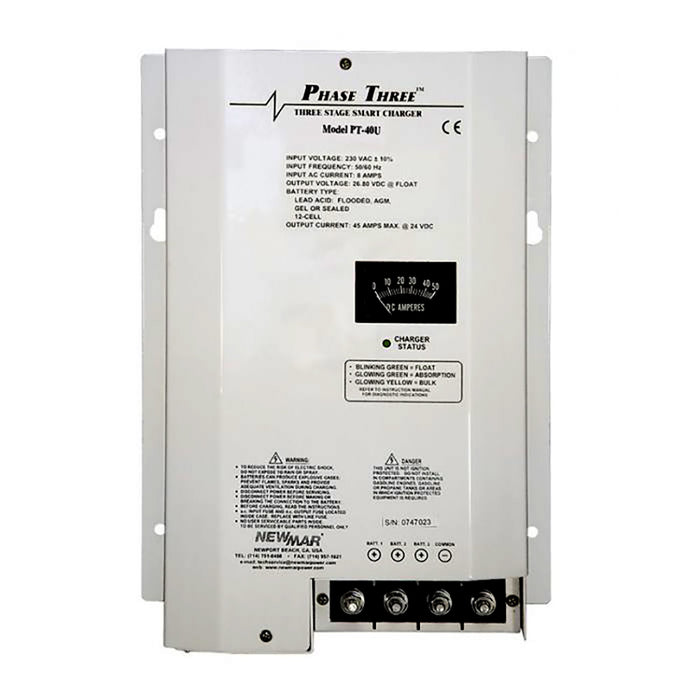

Newmar PT-40U Battery Charger
par Newmar Power

Newmar PT-40U Battery Charger

UGC
Économisez 19% Économisez 19%
$1,727.00
$1,727.00 - $1,727.00
$1,727.00
$1,402.75
$1,402.75 - $1,402.75
$1,402.75
Disponibilité In Stock In Store - Online Only 13 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
Non-returnable

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

PT-40U Battery Charger

Newmar’s Phase Three Series Battery Chargers employ “Smart” battery charging technology for 12-volt systems aboard marine applications including workboats, military vessels, commercial vessels, and recreational craft. This charger interacts with batteries, providing the optimum three-stage charge process for fast recovery and conditioning, maximizing performance, and extending battery life.

A selector switch adjusts output voltage to adapt to gel-cell, flooded lead-acid, or AGM battery types. An optional temperature compensation sensor also adjusts output for ideal voltage based on changes in the batteries’ ambient temperature. This model is housed in a rugged stainless steel case with a durable white powder coat finish, and the internal circuitry is polyurethane coated for maximum corrosion resistance.

Features:

  • 12-volt model
  • “Smart” circuitry provides three-stage charging – bulk, absorption, and float
  • Gel-Cell/Flooded Lead-acid/AGM battery type switch selects optimum charge/float voltages
  • Multiple isolated output banks; ammeter indicates total output current. (Except PT-7)
  • The optional sensor adjusts the output voltage based on battery temperature. (Except PT-7)
  • Current limitations prevent damage from overloading
  • Clean well-regulated output can be used as a power supply; can power loads directly without a battery in line
  • Built to last – rugged stainless steel case with a durable white powder coat finish, an optional drip shield, and marinized internal circuitry
  • Protection: Current Limiting, Thermal Protection, Forced Air Cooling, Drip Shield
  • ABS-type approval for battery charging and power supplies

Specifications:

  • Input VAC (50-60 Hz.): 90-264
  • Input Amps @ Full Load: @ 115 VAC: 6.8, @ 230 VAC: 3.4
  • Power Factor: .98 @ 115V and .95 @ 230V
  • Max Output Amps: 40
  • Output Banks: 3
  • Battery Capacity (Amp-Hours): 80-400
  • Operating Temp. Rating Reference: T-5
  • Case Size Reference: A-3
  • Case Size (H x W x D): 13.85B x 9.5 x 4.8B inches (35.2B x 24.1 x 12.2B centimeters) *Note with Dripshield installed B add .75” (1.9 cm) to height and 1.35” (3.4 cm) to depth
  • Weight Lbs./Kg: 11/6
  • Optional Temp. Sensor Model: TCS-12/24
  • Remote Panel Model: EVM-12-2
  • Equalize Option: No
  • Output Indicator Reference: M-3
  • Compliance Reference: CG

Temperature Rating References:

  • Temperature: -20 degrees C to +70 degrees C
  • Derate Linearly From 100% @ 50 degrees C to 50% @ 70 degrees C

Nominal Output Voltages at Gel/Flooded Switch Settings (without Temperature Compensation):

  • Gel-Cell: 14.0 VDC Charge @ 50% load and 13.6 VDC Float @ .5 amp load
  • Flooded/AGM: 14.2 VDC Charge @ 50% load and 13.4 VDC Float @ .5 amp load

Compliance References:

  • CG: USCG CFR 183.410 (Ignition protected)
  • CE: Carries the CE mark
  • ABS: PT Series meets SVR 2009 4-8-3/5.9, Under 90 meters Rules 2006 4-6-4/7.19, and HSNC 2007 4-8-3/5.13.

Options:

  • Remote Panel, model EVM-12-2, for us with model PT-40 only (Enables monitoring of when the battery charger is “on” and the batteries’ state of readiness, at a glance of two (2) battery banks only)
  • Temperature Compensation Sensor, Model TCS 12/24, for use with all models except PT 7 (-5 mV per cell degrees C, 25′ cable (40’cable optional)
