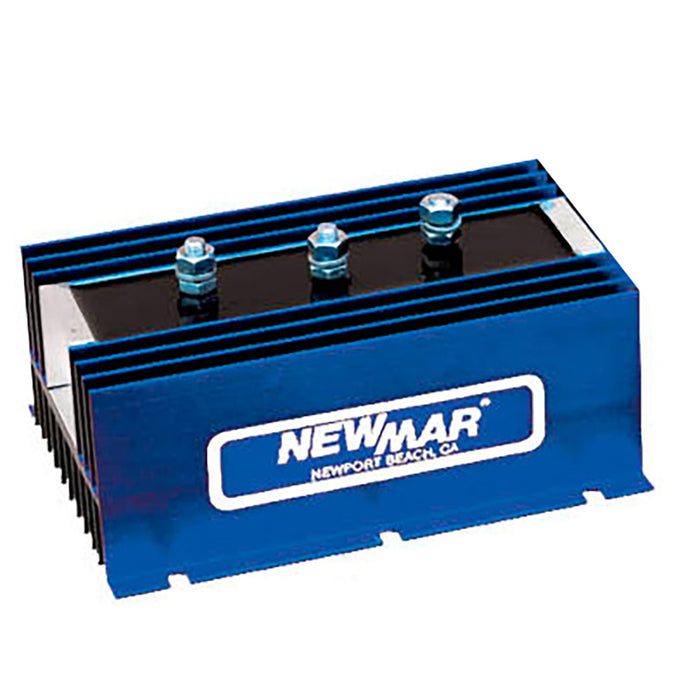

Newmar 2-3-120 Battery Isolator
par Newmar Power

Newmar 2-3-120 Battery Isolator

UGC
Épuisé
$653.00
$653.00 - $653.00
$653.00
$552.49
$552.49 - $552.49
$552.49
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

2-3-120 Battery Isolator

This heavy-duty isolator allows charging multiple batteries automatically from one or two alternators and prevents the discharge or ‘dumping” of one battery into another. Each battery is charged according to its need without overcharging and is rated for 12-, 24-, or 36-volt negative ground DC systems.

Features:

  • Conservatively rated diodes and a rustproof anodized aluminum heat sink case.
  • Heavy-duty construction
  • Rated for systems up to 48 volts DC, negative ground
  • Rust-proof anodized aluminum case
  • Stainless steel mounting hardware is provided
  • Protective covers are provided for terminals

Specifications:

  • Alternator Sources: 2
  • Battery Bank: 3
  • Max. Amperage Input Capacity: 120
  • Stud Terminal Size: 6mm
  • Dimensions (L x W x H): 12.5 x 4.5 x 3.1 inches
  • Weight: 5 lbs.
  • Operating Temperature: -40 to +80 degrees
  • Duty Cycle: Continuous rating to 50 degrees C Derate linearly to 70% @ 80 degrees C.
  • Temp. Rise: 5 degrees C at full rated current (mount vertically for optimum cooling)
  • Voltage Drop: 0.7V @ 50% load, 0.9V @ full load

*Note: These battery isolators are not compatible with self-exciting alternators. The alternator must have an external excitation lead. Please consult the manufacturer of your alternator if you are unsure of your configuration

Brand: Newmar Power

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet NPO2-3-120 Quick Guide ⬇ View Here
Guide NPO2-3-120 Installation Guide ⬇ View Here
