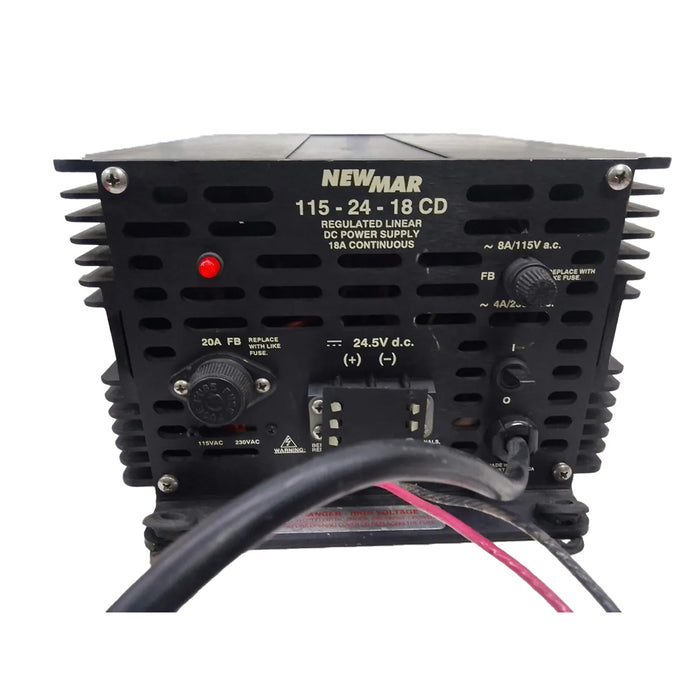

Newmar 115-24-18CD Power Supply
par Newmar Power

Newmar 115-24-18CD Power Supply

UGC
Économisez 20% Économisez 20%
$2,492.00
$2,492.00 - $2,492.00
$2,492.00
$2,002.75
$2,002.75 - $2,002.75
$2,002.75
Disponibilité In Stock In Store - Online Only 2 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery
Non-returnable

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

115-24-18CD Power Supply

This super-rugged DC power supply is ideal for powering 24-volt communication and navigation equipment onboard commercial vessels where reliability is essential. The proven linear circuit design provides pure noise-free output and a long service life.

Features:

  • Excellent Regulation and Ripple Spec (output voltage maintained within 1% under all rated line and load conditions)
  • Polyurethane conformal coated PC board and corrosion-resistant heavy-duty aluminum case with integral shock mounts assure survival in hostile environments
  • The heat generated by semi-conductors is extracted and dissipated by large heat sink fins for cool operation
  • Protection: overvoltage, current limit; (set @ 105% of intermittent rating), thermal overload, and input/output fusing
  • Thermally activated cooling fan on “CD” units

Specifications:

  • Nominal Input/VAC: 115/230
  • Maximum Input Current @115: 5.5
  • Maximum Input Current @230: 2.5
  • Output Amperage (Intermittent): 10
  • Output Amperage (Continuous): 4
  • Weight: 20 lbs. / 9.1 kg

Case Size:

  • H x W x D (inch): 5.7” x 4.8” x 16.3”

Input Range

105-125/210-250 VAC (selectable), 50-60 Hz; Derate to 50% output below 110 and 220 VAC

Operating Temperature

C.D. Units - 0-65 degrees C, Derate linearly from 100% @ 50 degrees C to 50% @ 65 degrees C thermal Shutdown @ 85 degrees C case temperature

Duty Cycle:

  • Intermittent: 20 minutes max on time, 20% duty
  • Continuous: 24 hours/day 100% Duty

Options:

  • Modify for use as a battery charger
  • The output voltage is adjusted (see Output Voltage for range)
  • Transfer relay for back-up battery in event of power failure (ERC option)

Output Voltage:

  • 24.5 VDC (Internally adjustable 21-27.5 VDC)
  • Ripple: 70mV P-P (@ 110-125 / 220-250 VAC input)
  • 1% Line and Load (@ 110-125 / 220-250 VAC input)

Mechanical:

  • Powder-coated aluminum heat sink case
  • Front panel terminal block
  • Heavy-duty mounting flange
  • Conformal-coated PC board
