Lumishore 010-04449-00 LUX Livewell Light LW25 .5 Watt Chrome Bezel
par Lumishore

Lumishore 010-04449-00 LUX Livewell Light LW25 .5 Watt Chrome Bezel

UGC
$119.99 - $119.99
$119.99
$122.80
$122.80 - $122.80
$122.80
Disponibilité In Stock In Store - Online Only 5 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

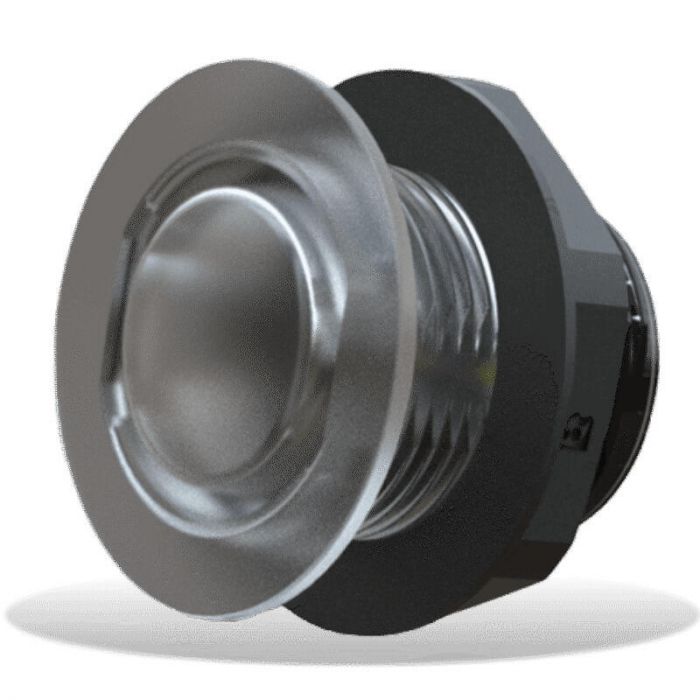

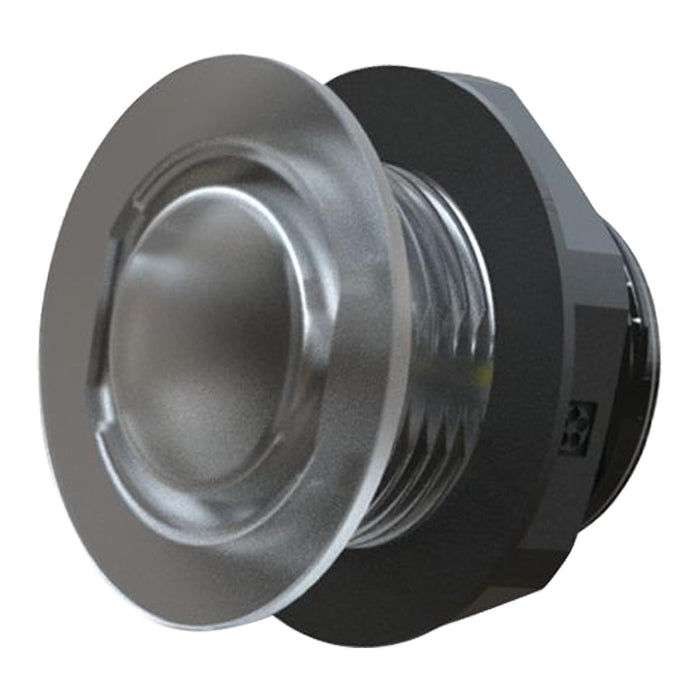

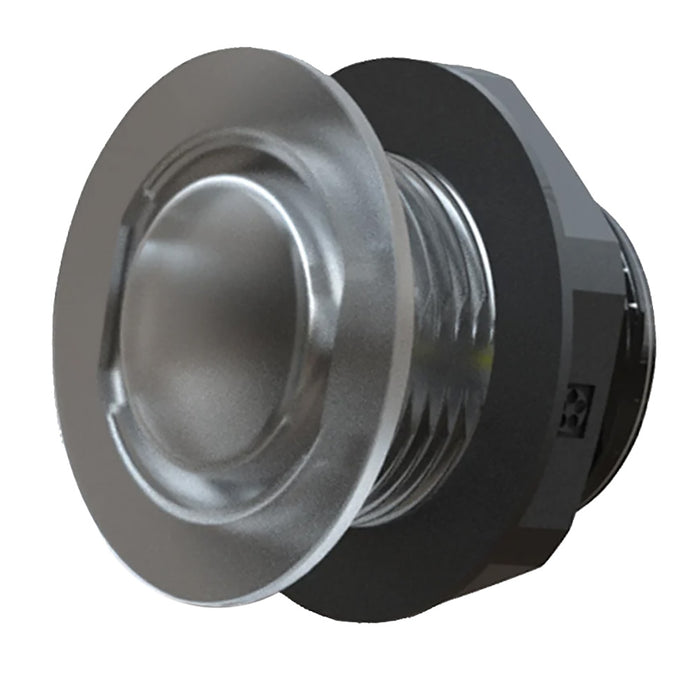

LUX Livewell Light LW25 .5 Watt - Chrome Bezel

LUX Livewell Lights are built for the harsh environment of livewells, fish boxes, and splash wells. Suitable for any wet place onboard, or submerged underwater, where an internal screw thread/locking nut is desirable.

Full spectrum CRGBW (cold white, red, green, blue, warm white ) and white color temperature tunable (from 2700k to 6500k) in one livewell light unit.

Easily controllable by a momentary switch, with the option to upgrade to full integration with your compatible MFD and/or Lumishore Display.

The LW25 is completely sealed and IP68 rated and can be installed with or without a stainless steel bezel. Dimmable as standard and powered by the LUX Light Control Module.

Specifications:

  • Ingress Protection: IP68
  • Supply Voltage Range: 10.5 - 31 V DC
  • Max Current Draw: 0.1A / 0.05A
  • Front diameter (Bezel): 50mm
  • Profile (Bezel): 5.4mm
  • Front diameter (Without Bezel): 36mm
  • Profile (Without Bezel): 3.5mm
  • Depth: 30.0mm
  • Hole diameter for fitting: 25mm
  • Mechanical installation: Bulkhead Panel Mount (with marine adhesive)
  • Number of Livewell Lights per control module: 16
  • Control options: Momentary switch or upgrade to full MFD and optional Lumishore Display

Brand: Lumishore

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet LMI010-04449-00 Quick Guide ⬇ View Here
Guide LMI010-04449-00 Installation Guide ⬇ View Here
