Zipwake 2011518 | Series S KBI750-S Integration Kit Box with Two 750 mm (29.5 in) Interceptors
par Zipwake

Zipwake 2011518 | Series S KBI750-S Integration Kit Box with Two 750 mm (29.5 in) Interceptors

UGC
Économisez 12% Économisez 12%
$5,823.85
$5,823.85 - $5,823.85
$5,823.85
$5,124.99
$5,124.99 - $5,124.99
$5,124.99
Disponibilité In Stock In Store - Online Only 1 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

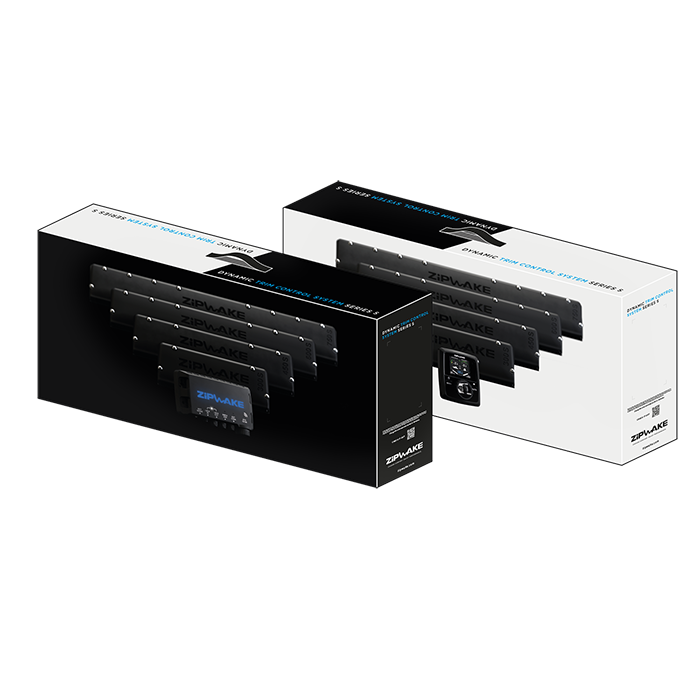

The Zipwake KBI750-S is a complete Series S integration-focused kit box built around two 750 mm (29.5 in) straight interceptors. It packages the matched control, distribution and interceptor components specified for this exact kit.

This configuration uses the Zipwake integrator module for MFD, smart-device and network-based control instead of a standalone control panel.

Product Information

Brand Zipwake
Series Series S
Model KBI750-S
Manufacturer Part Number 2011518
Product Type Integration Kit Box
Configuration Straight
Interceptor Size 750 mm (29.5 in)

Key Features

  • Factory-defined Series S kit configuration
  • Matched pair of straight interceptors
  • Control or integration hardware matched to the kit model
  • Exact component quantities confirmed in the current Zipwake specification

Specifications

Kit Configuration Straight
Interceptor Size 750 mm (29.5 in)
Packaged Dimensions 980 x 156 x 274 mm (38.6 x 6.1 x 10.8 in)
Packaged Weight 11.6 kg (25.6 lbs)
System Supply Voltage 12–32 V DC
Maximum Boat Speed 60 knots
Blade Stroke 30 mm (1.2 in)
Blade Rate 20 mm/s (0.8 in/s)

Included

  • 1 × IM integrator module
  • 1 × SC7-M12 standard cable, 7 m (23 ft)
  • 1 × DU-S distribution unit with 4 m (13 ft) power cable
  • 2 × IT750-S interceptors, each with 3 m (10 ft) cable and cable cover components

Compatibility

Designed as the exact KBI750-S configuration for Zipwake Series S. Components from other series or non-PRO/PRO generations must not be mixed.

Installation Notes

  • Verify system sizing, interceptor placement and hull suitability before installation.
  • Use the exact Zipwake installation instructions and drill templates for the included interceptor models.
  • Connect power protection, networking and cable extensions only as specified for this series.

Important Information

This is a complete kit box with the exact components listed above. Do not replace the verified interceptor size or configuration with another model.
