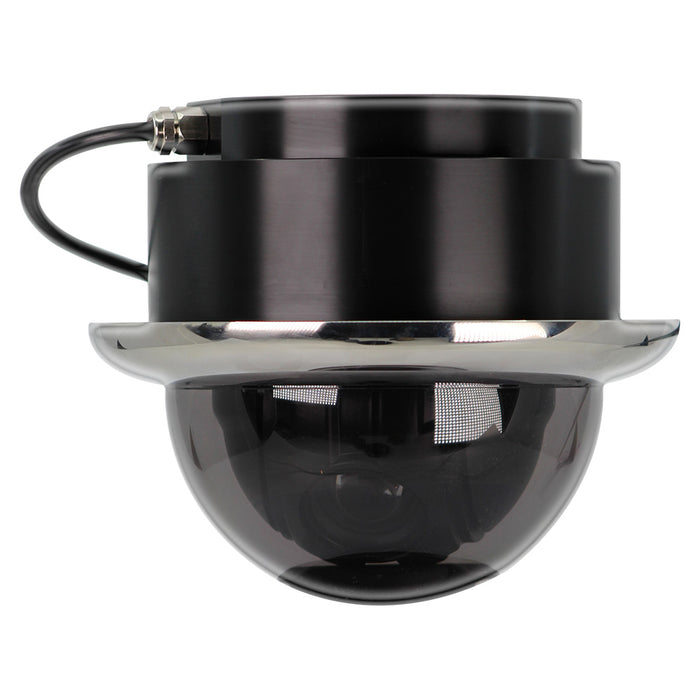

Iris Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Resolution Analogue Sensor - 1000TVL - 4 in 1 Video Format
par Iris Innovations

Iris Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Resolution Analogue Sensor - 1000TVL - 4 in 1 Video Format

UGC
Épuisé
$1,450.00
$1,450.00 - $1,450.00
$1,450.00
$1,367.69
$1,367.69 - $1,367.69
$1,367.69
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Miniature Marine PTZ Dome Camera - Stainless Bezel - Hi-Resolution Analogue Sensor - 1000TVL - 4 in 1 Video Format

The IRISx106 range of multi-format miniature, controllable cameras are the smallest marine PTZ cameras available on the market and provide fast, smooth variable speed control in a variety of formats to suit your requirements.

The IRIS106 features a high-resolution camera sensor that can be switched to output analog (CVBS), AHD, HD-TVI, and HD-CVI video formats depending on your requirements. In analog mode (default), the camera will be connected directly to all MFDs that feature a composite video input to provide a crisp, clear video image. Set the camera to HD-TVI and connect via one of our Hybrid recorders or TVIHDMI encoders, and you will achieve 1080P high-definition video in real time, compatible with MFDs that feature digital (HDMI / DVI) inputs.

The camera can be controlled by our IRIS595 joystick controller, TE01 rotary controller, or via an Iris HVR interface. Data communication to the camera is achieved via a two-wire RS485 serial data connection.

The camera housing is designed to be as small as possible, simplifying installation and fitting in discreetly with the boat's aesthetic, unlike other large, unsightly marine PTZ cameras. The body of the camera is made from lightweight but tough ABS plastic, and the dome is cast from smoke acrylic. The camera housing is finished off with a marine-grade stainless steel bezel with a high polish (standard). A surface mount bracket is also available for the camera (Part Number: BRK106) facilitating installation directly onto a bulkhead. This is often used when installing in engine rooms where it is not possible to recess mount the device.

Because of its small size and sleek design, the IRIS4106 can be used for deck, companionway, tender monitoring, engine room monitoring, and as part of your onboard surveillance system. In summary, the 4106 is a very versatile, robust, and controllable marine PTZ camera.

Features:

  • Marine Grade 316 Stainless Case
  • The smallest PTZ dome available (86 mm)
  • Analog
  • Huge compatibility
  • Easy installation & low power
  • Stylish high-polished finish
  • Fast, responsive pan, tilt, and zoom operation

Specifications:

  • Lens (millimeter): F1.8 / F=4.9mm 49mm
  • Image Sensor (inch): 1/3” Panasonic CMOS
  • Image Processing: Composite
  • Effective Pixels: 1944(H) x 1092(V) Approx 2.12M Pixels
  • Resolution: 1000TVL
  • Min Illumination: 0.1 Lux (Colour) / 0.01 Lux (B/W)
  • Illumination: NA
  • IR Distance: NA
  • Day / Night: Auto / Day / Night
  • S/N Ratio: >48dB
  • Optical Zoom: 10x
  • Digital Zoom: 10x
  • Wide Dynamic Range: Off / Low / Middle / High (WDR SNR 120dB)
  • BLC: Off / BLC
  • 3D DNR: Off / Low / Middle / High
  • Mirroring: Horizontal Flip / Vertical Flip
  • AGC: 0-32
  • Pan Details: 360-degree Continuous Rotation / Speed 0.5300-degree sec
  • Tilt Details: 0 90-degree / Speed 0.5300-degree sec
  • Network: NA
  • Protocol: PELCO-D / RS485 serial data
  • Power over Ethernet: NA
  • P2P: NA
  • Smart Phone: NA
  • Compatibility: All MFDs with Composite Video Input
  • Max Users: NA
  • Power: +/-12VDC
  • Power Consumption: 0.8A Max
  • Operating Temperature: -20-degree C + 60-degree C
  • Dimensions (millimeter): Bezel OD = 154mm, Panel Cutout = 122mm, Depth Behind Panel = 58mm (For IRIS4106 model additional space should be allowed for RJ45 Connector), Draft = 73mm
  • Ingress Protection: IP66
  • Weight: 1.1Kg
  • Material: 316L Stainless Steel Bezel, Polycarbonate Dome, ABS Plastic Housing

Brand: Iris Innovations

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Brochure INVIRIS106 Brochure ⬇ View Here
