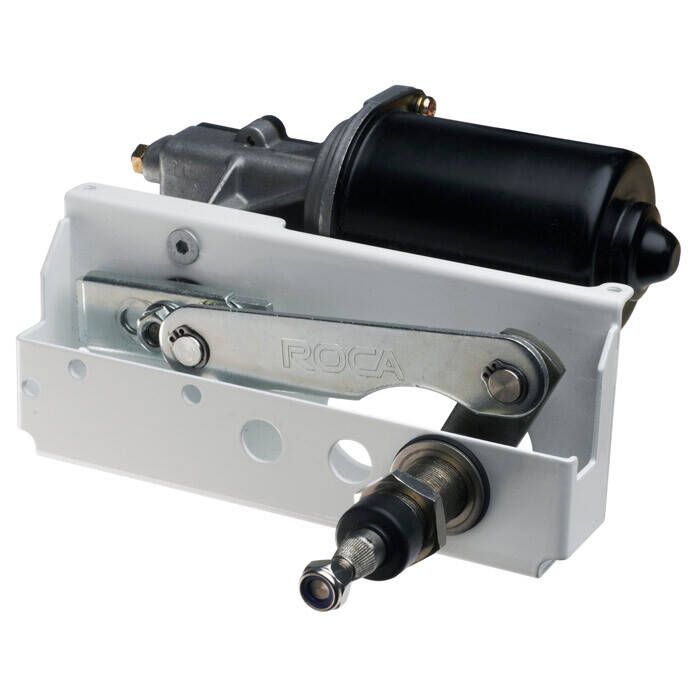

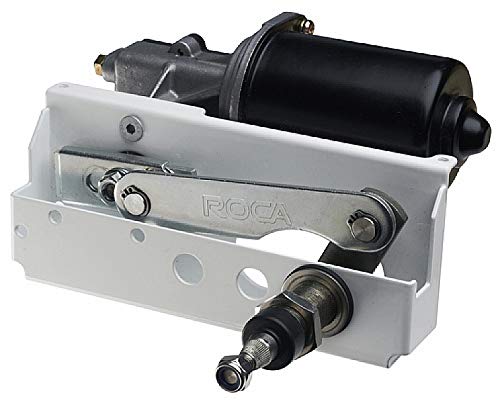

Imtra RC531025 Roca W25-Series Windshield Wiper Motor 12V 4.06"
par Imtra

Imtra RC531025 Roca W25-Series Windshield Wiper Motor 12V 4.06"

UGC
Économisez 40% Économisez 40%
$541.25
$541.25 - $541.25
$541.25
$325.09
$325.09 - $325.09
$325.09
Disponibilité In Stock In Store - Online Only 20 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Roca W25 Series Windshield Wiper Motor

Features:

  • Heavy-duty 2-speed wiper motor drives pendulum and pantograph wiper arms up to 30", with wiper blades up to 30"
  • Motor designed and built for the most demanding conditions
  • Dynamic parking, changeable to port or starboard
  • Single tapered drive shaft for secure motor/arm connection
  • External mount idler shaft for pantograph option
  • Easily adjustable sweep angle 45° to 110° (stepless)
  • Internal thermoswitch
  • Insulated ground for metal, fiberglass and wooden boats
  • Stainless steel driveshaft
  • 3-year limited warranty

Specifications:

  • Wiper Arm / Blade Combination: Up to 30" (750 mm) arm / up to 30" (750 mm) blade
  • Adjustable Sweep Angle: 45° - 110° (motor is pre-set to 45° sweep / starboard parking position)
  • Sweeps per Minute: 35 (low) / 55 (high)
  • Mount: Bulkhead
  • Torque: 25 Nm
  • Regulatory: CE approved, EMC protected
  • Max Bulkhead Thickness
    • 3.07" (78 mm) Driveshaft Length: 1.10" (28 mm)
    • 4.06" (103 mm) Driveshaft Length: 2.10" (53 mm)
    • 5.04" (128 mm) Driveshaft Length: 5.04" (128 mm)
  • 12V models
    • Rated Amp Draw: 7A
    • Fuse: 25 Amp
  • 24V models
    • Rated Amp Draw: 4A
    • Fuse: 15 Amp
