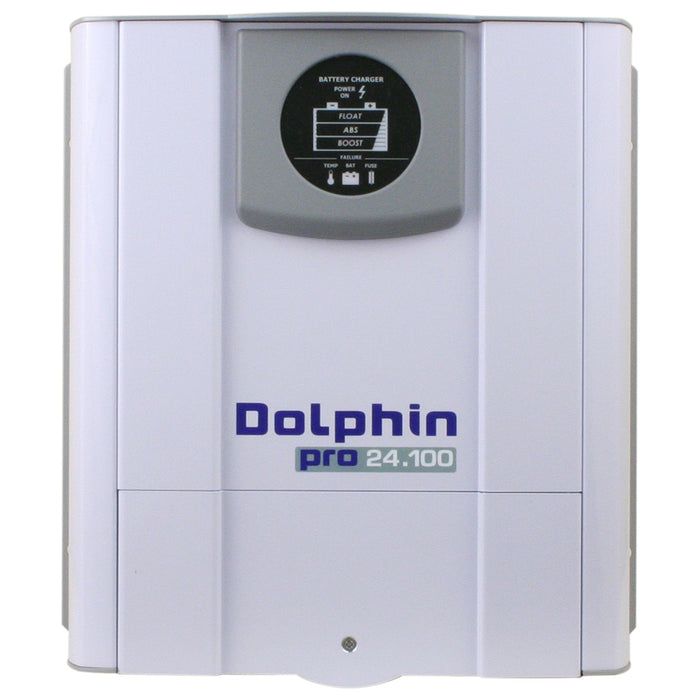

Dolphin Charger Pro Series Dolphin Battery Charger - 24V, 100A, 230VAC - 50/60Hz
par Dolphin Charger

Dolphin Charger Pro Series Dolphin Battery Charger - 24V, 100A, 230VAC - 50/60Hz

UGC
Économisez 27% Économisez 27%
$3,052.00
$3,052.00 - $3,052.00
$3,052.00
$2,229.85
$2,229.85 - $2,229.85
$2,229.85
Disponibilité In Stock In Store - Online Only 8 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Pro Series Dolphin Battery Charger - 24V, 100A, 230VAC - 50/60Hz

The Dolphin Series of battery chargers has always been recognized for its outstanding quality, which the manufacturer is proud to support with a 2-year warranty. Due to production on a wide scale, Dolphin is able to offer high-quality, truly international battery chargers at a reasonable price.

The Pro Range, which allows battery banks of up to 1000 amps to be charged, can be equipped with an optional touchview touchscreen. It provides an intuitive display of measurements as well as charging phases (boost, absorption, and float), the allocated available power, and possible operating faults. The Pro range is equipped with communication via CAN bus, which means it can be used professionally in all land and industrial energy management sectors.

Features:

  • 24V-100A Dolphin Pro (230 VAC 50/60 Hz input voltage only)
  • All Dolphin Battery Chargers and accessories are CE-marked and manufactured to UL and ABYC specifications
  • The Pro Touch Range features a built-in TouchView remote in place of the standard display panel on the Pro chargers
  • The Touchview control panel gives the user more information and control of the charger functions
  • LED Display for programming and monitoring functions
  • Temperature sensor for battery compensation
  • Switch mode technology and a three-stage charging design with a power supply
  • Modern, lightweight, and compact design with white aluminum powder-coated casing
  • Universal AC input with automatic voltage switching 115/230 VAC 50/60 Hz (24V-80A, 24V-100A, and 24V-150A are 230VAC 50/60 Hz ONLY)
  • 4 screw simple install with easy access removable panel
  • ISO 9002-certified manufacturing plant

Three-Stage Charging Curve

Bulk Stage: A high current is sent to the battery until it reaches approximately 80% of its full charge.

Absorption Stage: The voltage level is maintained and the current is reduced until the battery is 100% charged.

Float Stage: Voltage and current are reduced to maintain the battery. Float gives what the battery requires.

Brand: Dolphin Charger

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Manual DOL99504 Owner's Manual ⬇ View Here
