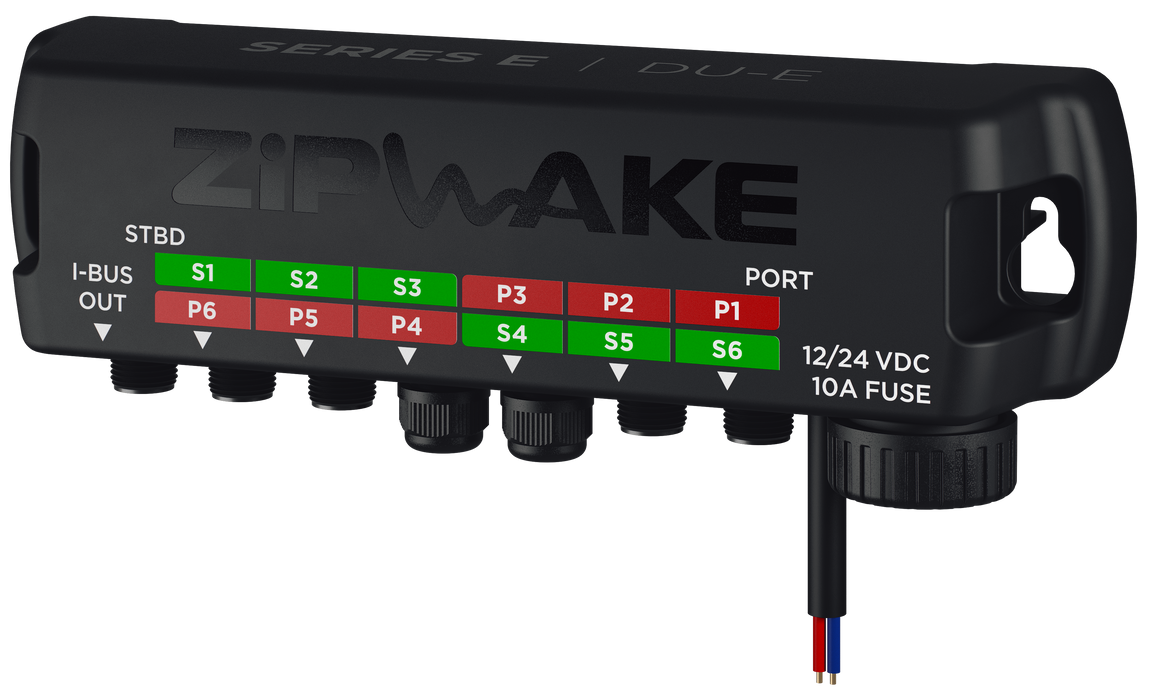

Zipwake 2012033 | Series E DU-E Distribution Unit with Power Cable
par Zipwake

Zipwake 2012033 | Series E DU-E Distribution Unit with Power Cable

UGC
Économisez 16% Économisez 16%
$692.80
$692.80 - $692.80
$692.80
$580.80
$580.80 - $580.80
$580.80
Disponibilité In Stock In Store - Online Only 4 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Zipwake DU-E is the protected power-distribution component for Series E systems, supporting up to three dual-servo or six single-servo Series E interceptors; DU-EX expands the installation to six dual-servo units.

Its sealed, oil-resistant and ignition-protected housing is suited to engine-room installation, and the included power cable simplifies connection to the vessel supply.

Product Information

Brand Zipwake
Series Series E
Model DU-E
Manufacturer Part Number 2012033
Product Type Distribution Unit

Key Features

  • Up to three dual-servo or six single-servo series e interceptors; du-ex expands the installation to six dual-servo units
  • Waterproof and oil-resistant marine enclosure
  • Ignition-protected design
  • Built-in electrical protection
  • Six servo connections

Specifications

Supply Voltage 12–32 V DC
Power Consumption 0.1 W max
Protection Fuse 10 A ATO
Power Cable 6 m (19.7 ft), 12 AWG, 9 mm (0.35 in) diameter
Operating Temperature -20°C to +85°C (-4°F to +185°F)
Storage Temperature -40°C to +90°C (-40°F to +194°F)
Waterproof Rating IP67 with cables or protective caps mounted
Oil Resistance Common engine fluids
Compliance CE, FCC, SAE J1171 ignition protected
Weight 1.1 kg (2.4 lbs)

Included

  • 1 × DU-E distribution unit
  • 1 × power cable, 6 m (19.7 ft)

Compatibility

For the exact Series E system role stated above. Use only with matching Zipwake control/integrator and interceptor hardware.

Installation Notes

  • Mount in a dry, serviceable engine-room location within the specified environmental limits.
  • Fit protective caps to unused connections and follow the specified vessel-side fuse and main-switch arrangement.

Important Information

This unit is not interchangeable with a different Zipwake generation unless the exact system architecture explicitly supports it.
