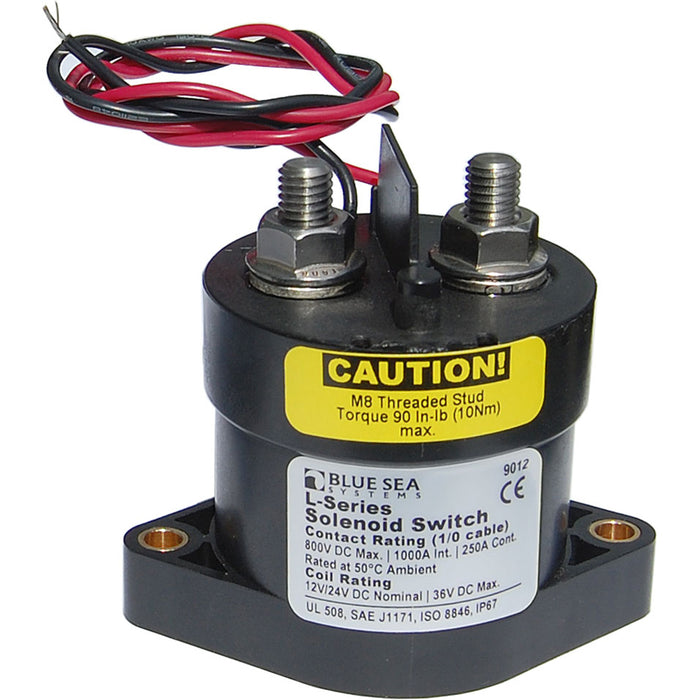

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A
par Blue Sea

Blue Sea 9012 L Solenoid Switch - 12-24VDC - 250A

UGC
Économisez 26% Économisez 26%
$359.36
$359.36 - $359.36
$359.36
$265.65
$265.65 - $265.65
$265.65
Disponibilité In Stock In Store - Online Only 26 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

L Solenoid Switch - 12-24VDC - 250A

Features:

  • Hermetically sealed contacts / vaporproof
  • Ignition protected - safe for installation aboard gasoline powered boats
  • Activated by an ON-OFF switch mounted anywhere
  • Integrated coil control minimizes heating and amperage draw
  • 450 Amp Class
  • Designed for 12 or 24 Volt systems
  • Ignition protected -- safe for installation aboard gasoline-powered boats
  • Activated by a low amperage ON-OFF switch mounted anywhere

Specifications:

  • Control Circuit Connection: 20 AWG Tinned Wire
  • Nominal Voltage: 12V DC / 24V DC
  • Coil Function: Normally Open
  • Mounting: #10
  • Operating Amperage Current: 3.6A when changing state
  • Amperage Operating Current: 0.13A @ 12 V / 0.07A @ 24 V
  • Terminal Stud Torque: 90 in-lb (10.17 Nm)
  • Continuous Rating: 250A Using 1/0 Wire Size / 300A Using 2/0 Wire Size / 400A Using 4/0 Wire Size / 450A Using 2 x (2/0) Wire Size
  • Intermittent Rating: 275A (5 min) Using 1/0 Wire Size / 400A (5 min) Using 2/0 Wire Size / 500A (5 min) Using 4/0 Wire Size / 600A (5 min) Using 2 x (2/0) Wire Size
  • Cranking Rating 30 sec: 1,000A / 1000A DC
  • Contact Form: SPST-NO
  • Input Voltage: 9-36V DC
  • Inrush Rating: 0.25 sec (10 repeats): 2000A
  • Switching Cycles: 1,000,000
  • Terminal Stud: Serrated Flange Nut
  • Terminal Stud Length: 0.66" (16.76mm)
  • Terminal Stud Size: 5/16" (M8)
  • Weight: 1.00lb (0.45 kg)

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brand: Blue Sea

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Manual BLU9012 Owner's Manual ⬇ View Here
