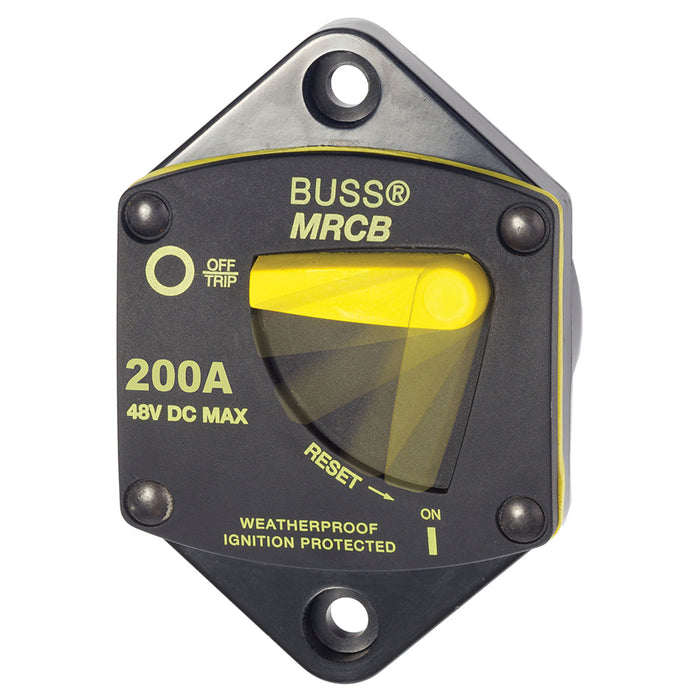

Blue Sea 7049 200 Amp Panel Mount 187 Series Circuit Breaker
par Blue Sea

Blue Sea 7049 200 Amp Panel Mount 187 Series Circuit Breaker

UGC
Économisez 24% Économisez 24%
$168.33
$168.33 - $168.33
$168.33
$127.40
$127.40 - $127.40
$127.40
Disponibilité In Stock In Store - Online Only 16 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

7049 200 Amp Panel Mount 187 Series Circuit Breaker

Features:
  • Combines switching and circuit protection into a single device*
  • Clear, single lever operation
  • "Trip Free" design cannot be held "ON" during fault current condition
  • Waterproof
  • Recessed mounting holes for clean appearance
  • Large Clearance around terminal studs accecpt heavy gauge wire lugs
  • Robust 5/16 M8 terminals provide high torque connections
  • Large lever with vertical/horizontal orientation provides indication of trip status
  • Ignition protected - Safe for installation aboard gasoline powered boats


Specifications:
  • Interrupt Rating - 5,000 A@12V DC, 3,000A@24V DC, 1,500A@42V DC
  • Maximum Voltage Rating - 48 Volts DC
  • Operating Temperature Range - -40xC to 85xC
  • Circuit Breaker Type - Thermally responsive bi-metal blade
  • Circuit Breaker Class - Type III - switchable/manual reset - trip free
  • Terminal Stud Size - 5/16"-18
  • Terminal Stud Torque - 75 in-lb
  • Mounting Holes - Accept #10 (M5) Screw
  • Weight Lb (Kg) - 0.50 (0.23)
  • Case Material - Thermoset Polyester
