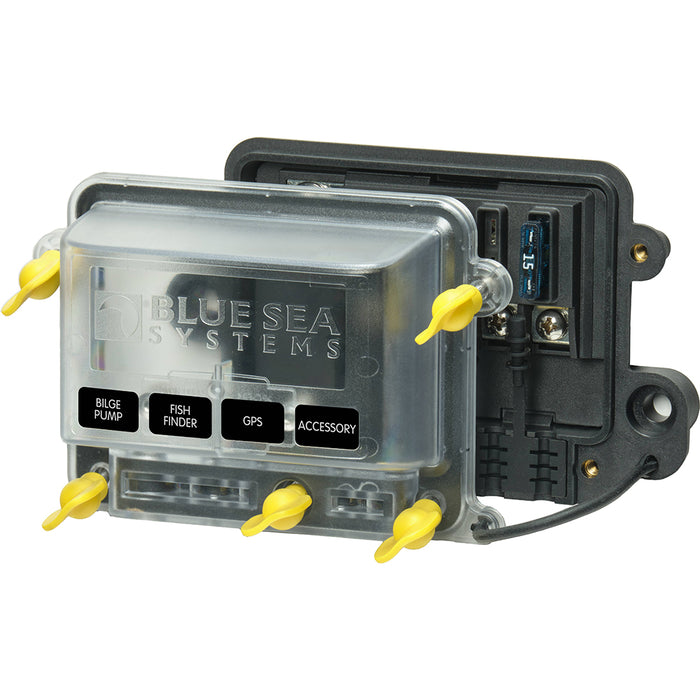

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block with Cover
par Blue Sea

Blue Sea 5056100 - Water Resistant ST-Blade Fuse Block with Cover

UGC
Économisez 24% Économisez 24%
$65.15
$65.15 - $65.15
$65.15
$49.25
$49.25 - $49.25
$49.25
Disponibilité In Stock In Store - Online Only 100 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

5056100 - Water Resistant ST-Blade Fuse Block with Cover

This Blue Sea fuse block provides water-resistant circuit protection for ATO/ATC fuses and circuit breakers in a compact footprint. Now with wing screws for toolless access.

Features:

  • Water-resistant design with a standard ring or spade-type terminals
  • Allows for simple wiring with standard tools
  • Accepts a wide range of wire sizes
  • Includes 3 wire plugs to maintain a water-resistant rating if less than 4 loads are required
  • Accepts ATO and ATC fast acting blade fuses
  • Accepts ATO/ATC-Style Low Profile Circuit Breakers
  • Nests with other ST-Blade water-resistant fuse blocks and water-resistant 100A busbars to reduce wire
  • 5056100 meets ABYC/USCG insulation requirements
  • Tin-plated copper busses and fuse clips
  • Includes four write-on circuit labels
  • Spare fuse and fastener storage in cover
  • Wing screws designed for tool-free installation of cover to meet ABYC compliance

Technical Specifications:

  • Cover - yes
    • Maximum Voltage - 32V DC
    • Bus Material - Tin-plated Copper
    • Mounting Holes - Accepts 1/4" (6mm) screws
    • Terminal Screws - 4 x # 8-32 with captive star lock washer
    • Wire Size - Input - (1) 8 AWG to 4 AWG
    • Wire Size - Load - (4) 16 AWG to 10 AWG

In the Box:

  • 5056100 Busbar
  • Instruction Manual

*Sold as an Individual

Brand: Blue Sea

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet BLU5056100 Quick Guide ⬇ View Here
