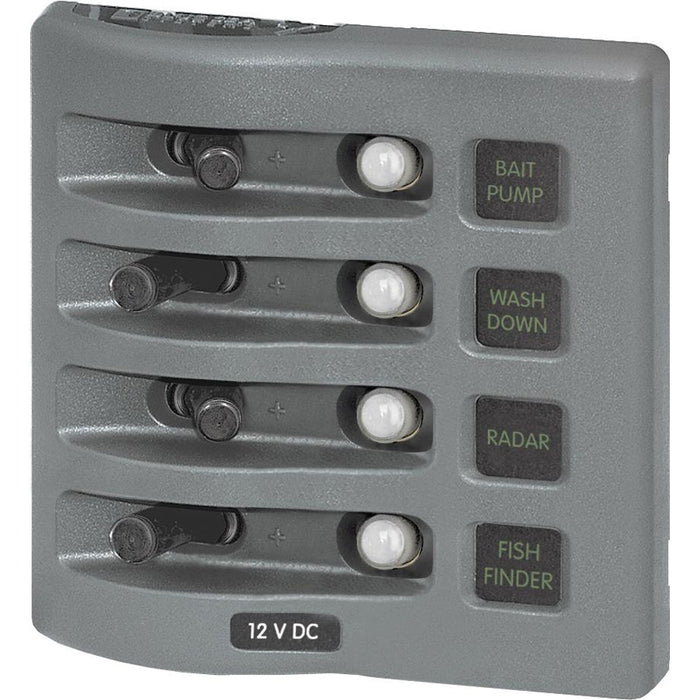

Blue Sea 4374-BSS WeatherDeck 12V DC Waterproof Circuit Breaker Panel, Gray 4 Positions
par Blue Sea

Blue Sea 4374-BSS WeatherDeck 12V DC Waterproof Circuit Breaker Panel, Gray 4 Positions

UGC
Économisez 26% Économisez 26%
$181.30
$181.30 - $181.30
$181.30
$133.65
$133.65 - $133.65
$133.65
Disponibilité In Stock In Store - Online Only 8 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Blue Sea 4374-BSS WeatherDeck 12V DC Waterproof Circuit Breaker Panel, Gray 4 Positions combines overcurrent protection with manual circuit control in marine and mobile electrical systems.

Compatible with all Blue Sea Systems Digital Dimmers; Designed for flybridge and open cockpit applications.

Product Information

Manufacturer Part Number 4374-BSS

Key Features

  • Compatible with all Blue Sea Systems Digital Dimmers
  • Designed for flybridge and open cockpit applications
  • Each panel can be mounted in four different orientations
  • Green LEDs aid low-light readability. All labels will be lit when the panel is powered, regardless of individual switch position.
  • Independent label backlighting allows switching and dimming
  • Rated IP67-temporary immersion for 30 minutes

Specifications

Maximum Amperage 15A @ 12v DC (per circuit) / 9A @ 24v DC (per circuit)
Nominal Voltage 12v / 24v DC
Trip Mechanism Circuit Breaker
Positions 4
Color Gray
Height 4.3"
Width 4.25"
Depth 3.5"
Backlighting Amperage 10mA/Illuminated Circuit
Backlighting Voltage 12 or 24v DC
Backlit Label Green LED
Panel Cumulative Rating 45A

Included

  • (1) 4215 Waterproof DC Label Kit - 30 Black Square Labels V1
  • (4) 4135 Push Button Reset Only Circuit Breaker Boot - Clear
  • (4) 4138 WeatherDeck Toggle Switch Boot - Black
  • (4) 4150 WeatherDeck Toggle Switch SPST - ON-OFF
  • (4) 7056 Push Button Reset Only Quick Connect Circuit Breaker - 15 Amps
