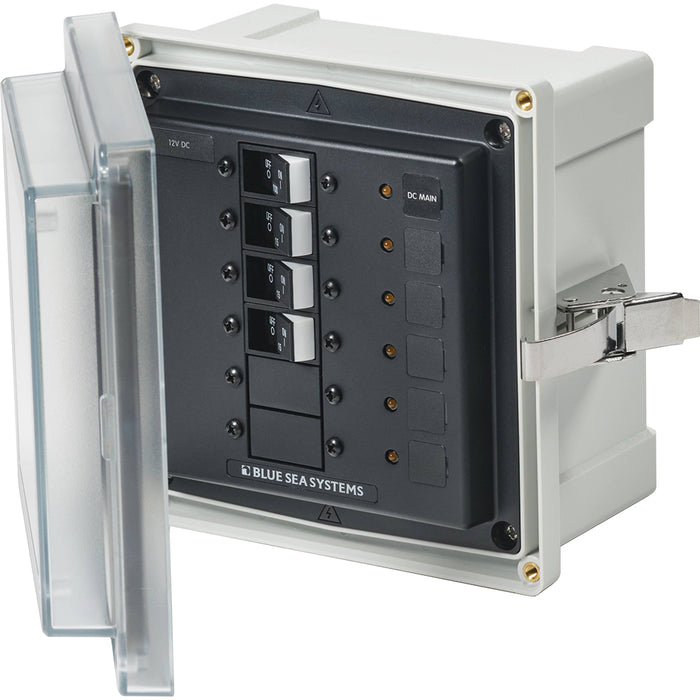

Blue Sea 3135 - SMS Panel Enclosure w/UL Main & 3 Branch (12/24V) - 12/24V DC
par Blue Sea

Blue Sea 3135 - SMS Panel Enclosure w/UL Main & 3 Branch (12/24V) - 12/24V DC

UGC
Économisez 26% Économisez 26%
$557.21
$557.21 - $557.21
$557.21
$411.69
$411.69 - $411.69
$411.69
Disponibilité In Stock In Store - Online Only 2 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

3135 - SMS Panel Enclosure with UL Main & 3 Branch (12/24V) - 12/24V DC

The 3135-panel enclosure for DC circuit breakers and other large frame devices.

Features:

  • Blank apertures for custom breaker loading
  • Glass-filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies™ A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for backlighting and ON indication

Technical Specifications:

  • Circuit Breaker Type - 1 x UL 489 DC Main and 3 x Branch 12/24V DC (15A)
    • Dimensions (Overall) (H x W x D) - 7.6" x 7.4"" x 4.7" (192 x 188 x 120mm)
    • Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
    • LEDs Installed - 6 x Amber ON indicating 12/24V DC

In the Box:

  • 3135 Enclosure
  • Glands x 6
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual

Brand: Blue Sea

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet BLU3135 Quick Guide ⬇ View Here
Brochure BLU3135 Brochure ⬇ View Here
Guide BLU3135 Installation Guide ⬇ View Here
