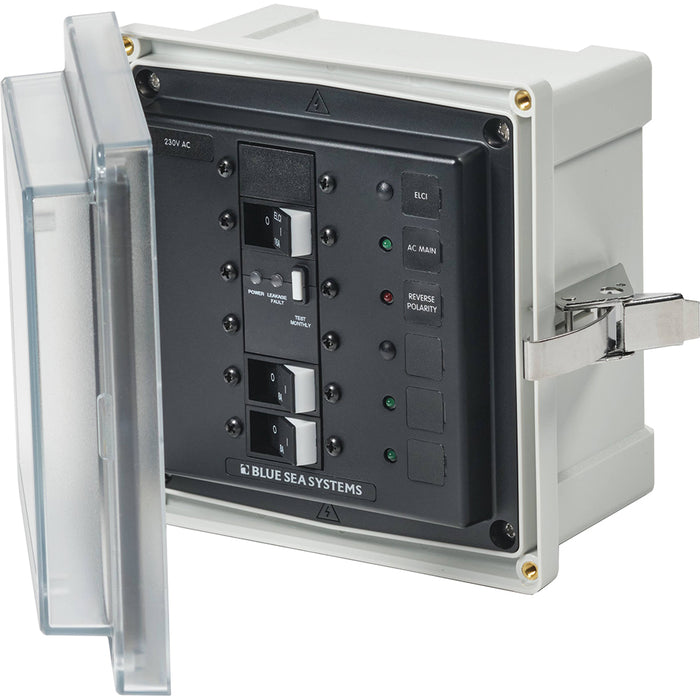

Blue Sea 3122 - SMS Panel Enclosure with ELCI (16A) & 2 Branch (8A) - 230V AC
par Blue Sea

Blue Sea 3122 - SMS Panel Enclosure with ELCI (16A) & 2 Branch (8A) - 230V AC

UGC
Économisez 33% Économisez 33%
$925.62
$925.62 - $925.62
$925.62
$621.99
$621.99 - $621.99
$621.99
Disponibilité Available for Order Lead Time Typically Ships in 1 to 2 Weeks In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

3122 - SMS Panel Enclosure with ELCI (16A) & 2 Branch (8A) - 230V AC

The 3122-panel enclosure is built for Equipment Leakage Circuit Interrupters (ELCI) main circuit breakers and other large frame devices. Meets ABYC E-11 when used with an ELCI Main circuit breaker and mounted within 10' of AC shore power inlet.

Features:

  • Blank apertures for custom breaker loading
  • Glass-filled polycarbonate base
  • Clear cover allows easy view of circuit breaker status
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Stainless steel latch secures cover without penetrating the enclosure
  • Blank circuit positions accommodate Carling Technologies A and C Series Flat Rocker and ELCI Main circuit breakers
  • Includes waterproof glands
  • LED lights for backlighting and ON indication

Technical Specifications:

  • Circuit Breaker Type - 1 x ELCI (16A) Main 230V and 2 x Branch (8A)
  • Dimensions (Overall) (H x W x D) - 7.6" x 7.4' x 4.7" (192 x 188 x 120mm)
  • Dimensions (Enclosure) (H x W x D) - 6" x 6" x 4" (152 x 152 x 102mm)
  • LEDs Installed - 1 x Red (Reverse Polarity - 230V AC and 3 x Green ON (230V AC)

In the Box:

  • 3122 Enclosure
  • Glands x 6
  • Labels
  • Mounting hardware
  • Instruction manual

*Sold as an Individual
