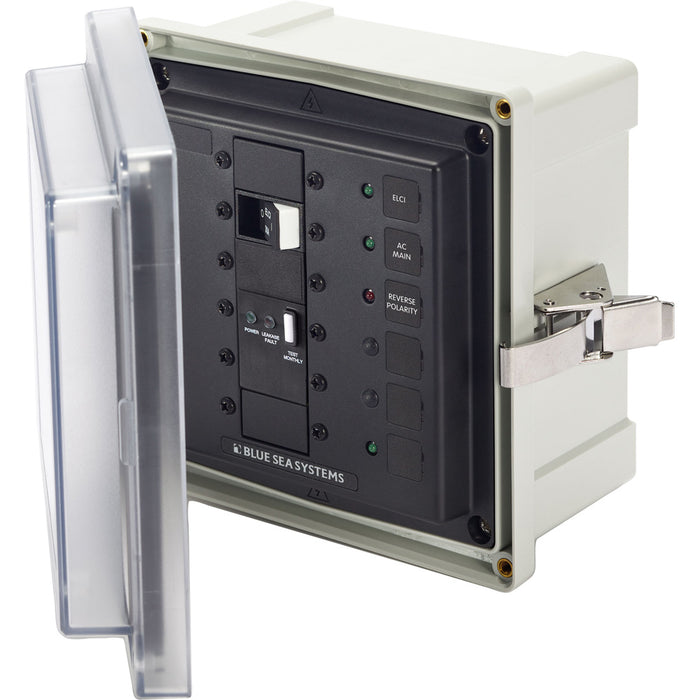

Blue Sea 3119-BSS SMS Surface Mount System Panel Enclosure, 120/240V AC/50A ELCI Main, 1 blank circuit position
par Blue Sea

Blue Sea 3119-BSS SMS Surface Mount System Panel Enclosure, 120/240V AC/50A ELCI Main, 1 blank circuit position

UGC
Économisez 31% Économisez 31%
$1,112.50
$1,112.50 - $1,112.50
$1,112.50
$766.15
$766.15 - $766.15
$766.15
Disponibilité In Stock In Store - Online Only 3 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

The Blue Sea 3119-BSS SMS Surface Mount System Panel Enclosure, 120/240V AC/50A ELCI Main, 1 blank circuit position is a purpose-built Blue Sea accessory for the compatible product or panel system.

Blank apertures for custom breaker loading; Clear cover allows easy view of circuit breaker status.

Product Information

Manufacturer Part Number 3119-BSS

Key Features

  • Blank apertures for custom breaker loading
  • Clear cover allows easy view of circuit breaker status
  • Easily removable stainless steel hinge pin for unobstructed installation
  • Glass-filled polycarbonate mounting box
  • LED lights for back lighting and ON indication
  • Overlapping cover for strength and increased gasket protection
  • Oversized, formed in place seamless PUR gasket
  • Stainless steel latch secures cover without penetrating the enclosure

Specifications

Amperage 50A
Dimensions 7.6" x 7.4" x 4.7" (192mm x 188mm x 120mm)
Weight 7.00lb (3.18 kg)
Cover Screws And Hardware 10-32 Stainless Steel
Enclosure Size 6.0" x 6.0" x 4.0" (152mm x 152mm x 102mm)
Maximum Operating Temperature 66° C
Minimum Operating Temperature 35° C
Mounting Hardware 1/4" Diameter, #12 (6 mm)
Voltage 120/240V AC

Included

  • Includes one 120/240V AC / 50A ELCI Main and one blank position
  • Includes waterproof glands
  • Stainless steel mounting hardware included

Important Information

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brand: Blue Sea

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Spec Sheet BLU3119 Quick Guide ⬇ View Here
Brochure BLU3119 Brochure ⬇ View Here
Guide BLU3119 Installation Guide ⬇ View Here
