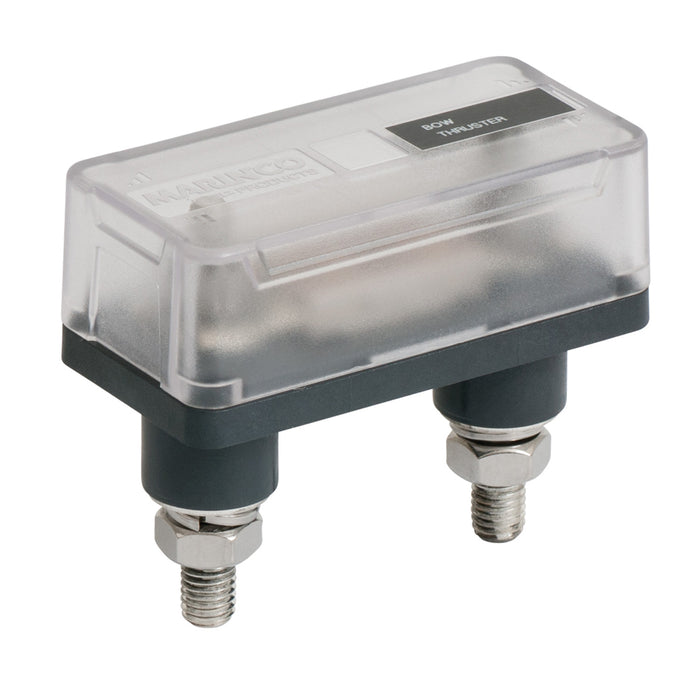

BEP Pro Installer ANL Through Panel Fuse Holder - 500A
par BEP Marine

BEP Pro Installer ANL Through Panel Fuse Holder - 500A

UGC
Économisez 28% Économisez 28%
$121.99
$121.99 - $121.99
$121.99
$87.79
$87.79 - $87.79
$87.79
Disponibilité In Stock In Store - Online Only 9 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Unavailable for Same-Day Pickup or Local Delivery

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

ANL Through Panel Fuse Holder, 500A

This innovative, through-panel mounting fuse holder (Patent Pending) offers the user easy visual inspection of fuse state, and easy/safe access to change fuses if blown. It provides high-capacity fusing, fast response, high interrupt ratings (up to 3,000 Amps DC), and is ideal for protecting today's demanding onboard power electronics technology including inverters and battery chargers. It can also protect wiring from short circuits, for example as a main fuse to protect house circuits, protection for digital switching main feed circuits, or heavy duty loads.

  • Convenient fuse inspection and replacement
  • Compact footprint saves space
  • Radiused connection points improve cable routing options (back-to-back lugs fit at any angle -90' to +90')
  • Innovative clear cover provides insulation/protection
  • Fuse viewing "window" in cover aids visual inspection of fuse state
  • Label recess on cover allows fitting up to +" width (12.7mm) printed labels from handheld label printers
  • Insert moulded studs offer superior mechanical strength
  • Designed for the harsh marine environment
  • Studs have anti-seize lubrication applied to prevent thread galling
  • Cable connection studs: 10mm (3/8")
  • Fuse mounting studs: 8mm (5/16"). Also allows 10mm (3/8") fuses to be used
  • Fuse type: ANL or ANN (very fast acting)
  • Amperage: 35-500A
  • 50 VDC, or determined by fuse fitted (if lower)
  • High temperature, fibre reinforced plastic base provides strength and chemical resistance
  • Clear polycarbonate cover
  • Tinned CDA260 highly conductive brass for improved strength on integral studs, stainless steel nuts and washers for longevity in the marine environment
  • All threads are metric

WarningWARNING: This product can expose you to chemicals including di(2-ethylhexyl)phthalate (dehp) which is known to the State of California to cause cancer, birth defects or other reproductive harm. For more information go to P65Warnings.ca.gov.

Brand: BEP Marine

WARNING: This product MAY expose you to chemicals, which are known to the State of California to cause cancer, birth defects and/or other reproductive harm. For more information go to www.p65warnings.ca.gov

Weight:
Dimensions: x x
Barcode:

Backorder Policy: Occasionally, due to demand or supplier delays, some items may be temporarily out of stock or non-stock items. To ensure you can still get the products you need, you can order items even when they're out of stock. Our sales team will update you with the shipping lead time. Once back in stock, we promptly ship your item, and if your order includes both in-stock and backordered items, we may split the shipment. You can cancel your backorder before shipment, and request a refund to original payment method. For any inquiries, contact us at sales@freeportmarine.com.

Type Resource Name Action
Brochure BEP778-ANLTP Brochure ⬇ View Here
Guide BEP778-ANLTP Installation Guide ⬇ View Here
