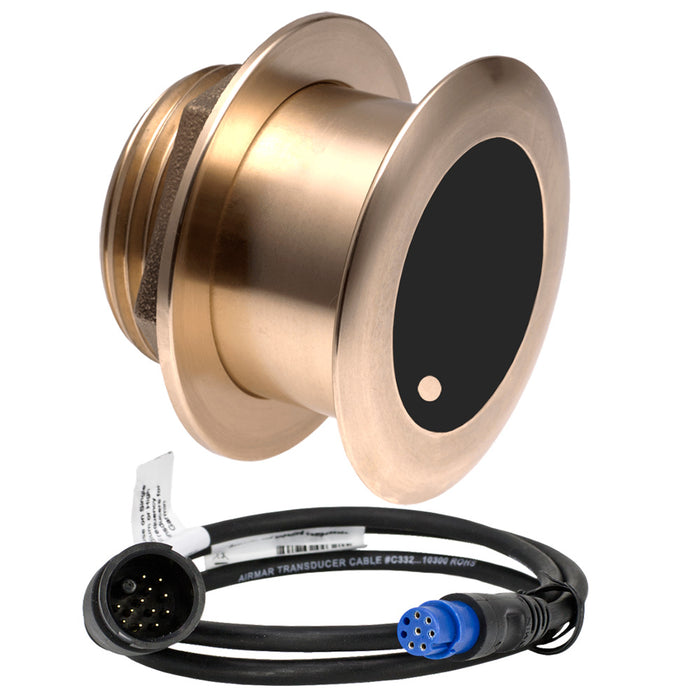

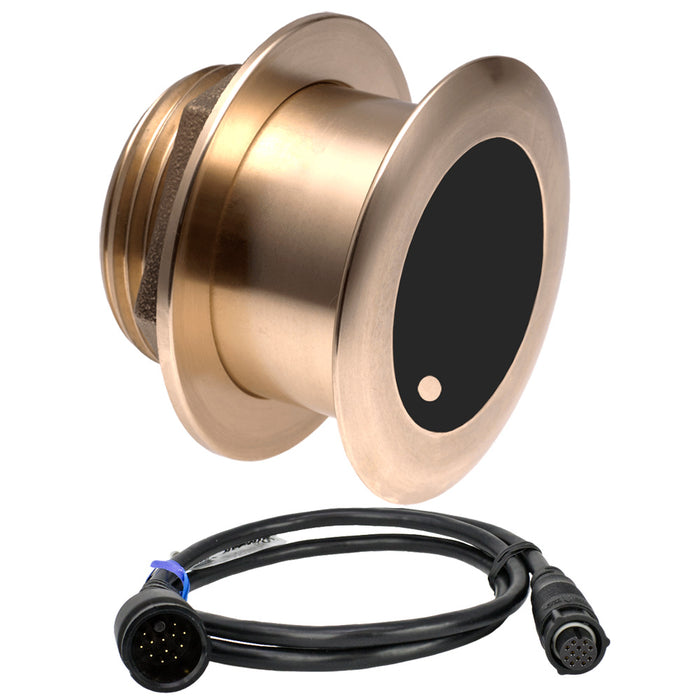

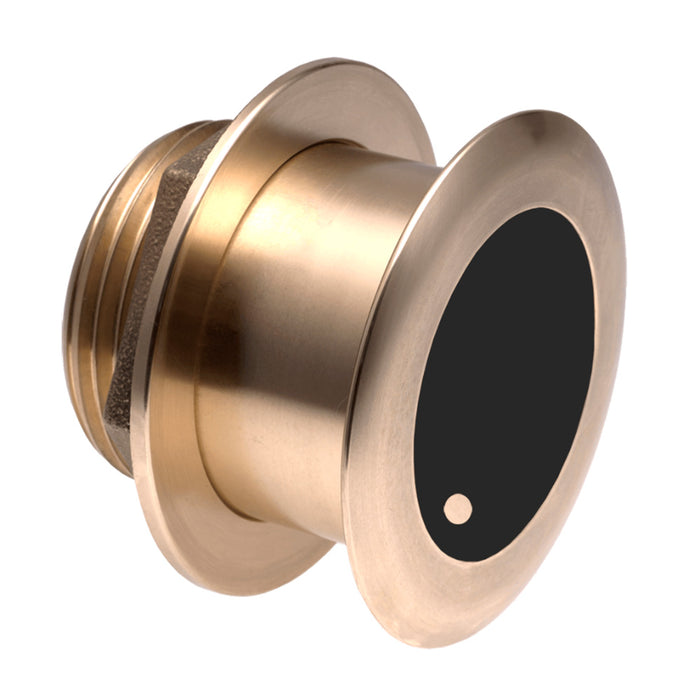

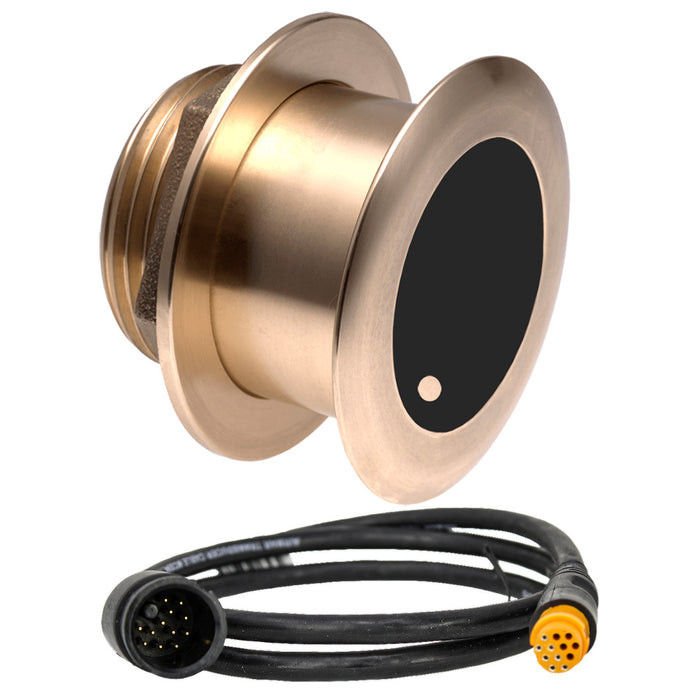

Airmar B175MW Bronze Thru-Hull 1kW Transducer
par Airmar

Airmar B175MW Bronze Thru-Hull 1kW Transducer

UGC
$2,199.99 - $2,199.99
$2,199.99
$1,999.00
$1,999.00 - $1,999.00
$1,999.00
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité In Stock In Store - Online Only 1 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Choisissez une Connector type
Choisissez une Tilt angle

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Chirp-Ready Medium Ultra-Wide Tilted Element™ Thru-Hull Transducer

Airmar's innovative transducer designs continue to revolutionize the fishing world with the Medium Ultra-Wide (MW) Tilted Element™ series. This 1kW powerhouse takes sonar performance to a new level by utilizing a medium frequency range (60-100 kHz) with an incredible ultra-wide beamwidth. Measuring 57-73° port-starboard and 16° average fore-aft, this transducer provides maximum coverage under the boat, making it the premier choice for anglers targeting pelagic species in the upper water column.

These Medium Ultra-Wide models are engineered for superior mid-depth performance and exceptional fish-target separation. When integrated into a sophisticated sonar system, they provide a broad set of frequencies to interrogate targets from deep to shallow. Housed in a popular low-profile bronze housing, the internal ceramic element is fixed at a specific angle to correct for your hull's deadrise. This ensures the beam is oriented vertically to receive maximum echo returns while remaining almost flush to the hull, yielding excellent resolution even at higher speeds.

Features:

  • Depth and fast-response water-temperature sensor
  • 1 kW power rating with depth tracking down to 400 m (1,300')
  • Medium frequency: 60-100 kHz with 40 kHz of total bandwidth
  • Ultra-wide beamwidth: 57° to 73° (port/starboard) and 16° average (fore/aft)
  • Bronze housing designed for stepped, planing, or displacement hulls
  • Low-profile thru-hull design for high-resolution performance at speed
  • Exclusive Xducer ID® technology for automatic sonar configuration
  • Fixed tilted element options to compensate for various hull deadrise angles

Specifications:

  • Acoustic Window: Urethane
  • Hole Size: 95 mm (3-3/4")
  • Hull Material: Fiberglass or wood
  • Max Deadrise Angle: Up to 24°
  • Max Vessel LOA: Up to 11 m (36')
  • Frequency: 60-100 kHz (Single-Band CHIRP)
  • Water Temperature Range: -10° to 40°C (14° to 104°F)
  • Weight: 2.7 kg (6 lbs.)
  • Functions: Depth and Temperature
This product may not be returned to the original point of purchase. Please contact the manufacturer directly with any issues or concerns.
