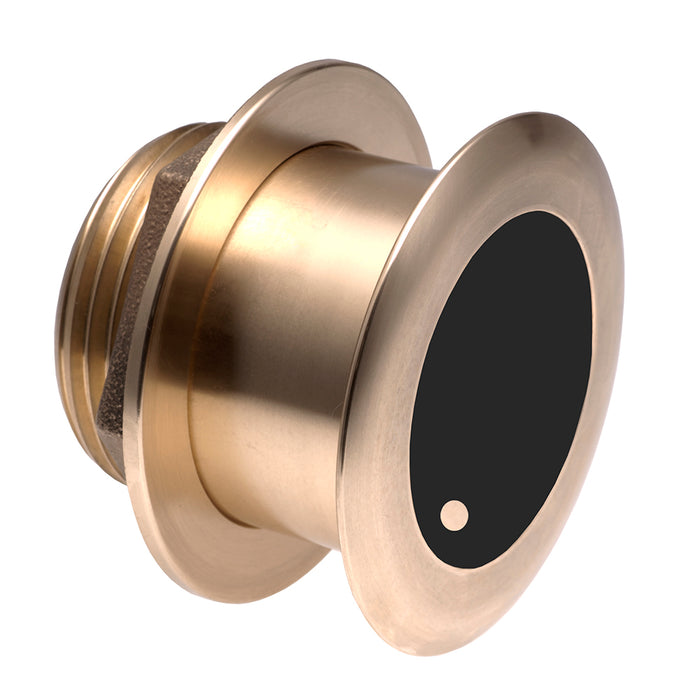

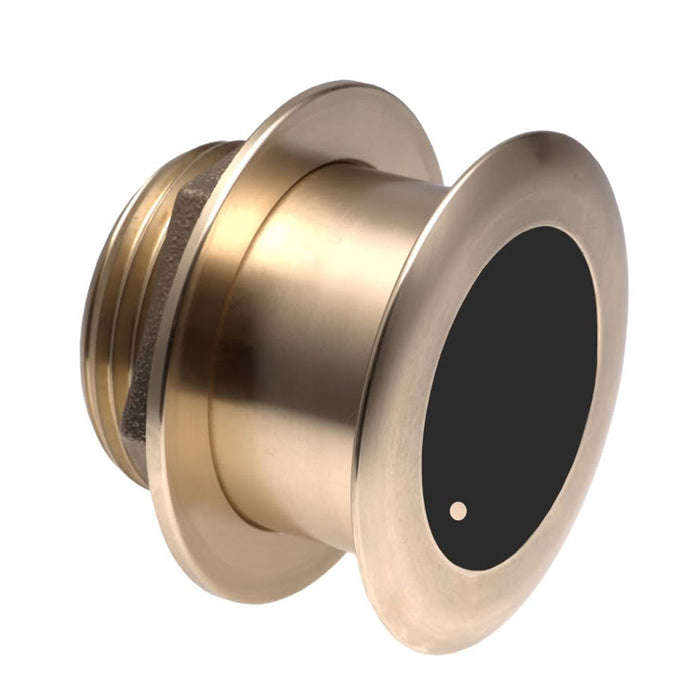

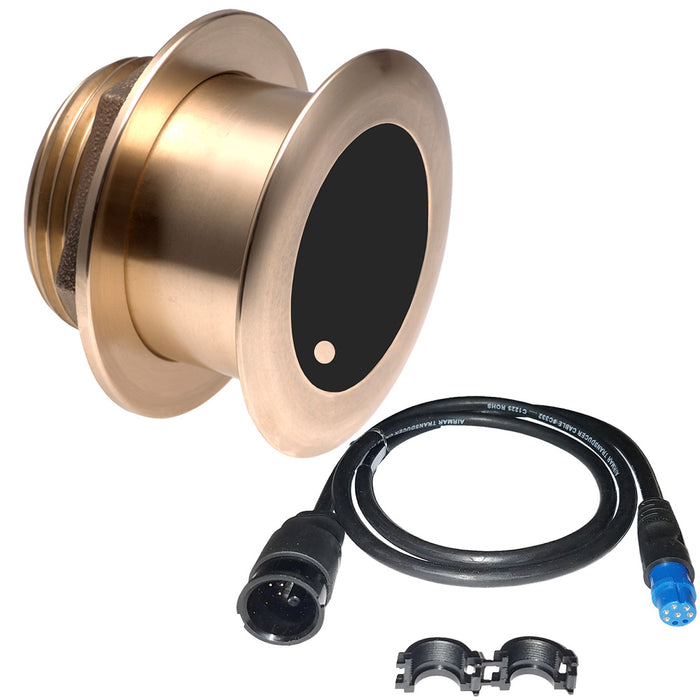

Airmar B175H Bronze Thru-Hull 1kW Transducer
par Airmar

Airmar B175H Bronze Thru-Hull 1kW Transducer

UGC
$1,164.00 - $1,539.99
$1,164.00
$1,399.99
$1,399.99 - $1,399.99
$1,399.99
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité In Stock In Store - Online Only 1 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité Rupture de stock In Store - Online Only - This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Disponibilité In Stock In Store - Online Only 1 This item is stored in an external warehouse. Online orders will be shipped direct to the shipping address or available for in-store pickup typically within 1-3 days.
Choisissez une Connector type
Choisissez une Tilt

30-Day Return Policy | See Details.

Need Help From Our Sales Team?

Available during our normal business hours:

Airmar’s low-profile, Chirp-ready transducer models are the perfect addition to smaller boats such as center consoles. Whether you’re a commercial fisherman, charter captain, or tournament angler, these broadband transducers enable bottom detection with 5 to 10 times greater detail and resolution so precise it’s possible to distinguish between individual baitfish, game fish, and underwater structures.

The high-frequency band delivers a narrow beamwidth, which is excellent for pinpointing fish holding tight to wrecks, reefs, and other structures. Transmitting across 130 to 210 kHz, this series provides up to 80 kHz of total bandwidth in just one installation for superior shallow-water performance and exceptional bottom detail. Tilted Element™ technology features the ceramic element fixed at an angle within the housing. Because the transducer is installed almost flush to the hull, the tilt corrects for the hull's deadrise, orienting the element horizontally to ensure maximum echo returns.

Features:

  • High-frequency CHIRP from 130 kHz to 210 kHz
  • 1 kW of power for deep-water performance and clarity
  • Depth and fast-response water-temperature sensing
  • 80 kHz of total bandwidth from a single transducer
  • Narrow beamwidth (15° to 9°) for superior target separation
  • Low-profile, thru-hull housing yields excellent resolution at speed
  • Bronze housing designed for use in fiberglass or wood hulls
  • Recommended for stepped, planing, or displacement hulls
  • Patented Xducer ID® technology

Specifications:

  • Power Rating: 1 kW
  • Frequency Range: 130-210 kHz
  • Maximum Depth: 304 m (1000')
  • Maximum Deadrise Angle: Up to 24°
  • Vessel LOA: Up to 11 m (36')
  • Hole Size: 95 mm (3-3/4") for fiberglass/wood
  • Mounting Style: Tilted Element Thru-Hull
  • Acoustic Window: Urethane
  • Weight: 2.7 kg (6 lbs.)
